Introduction

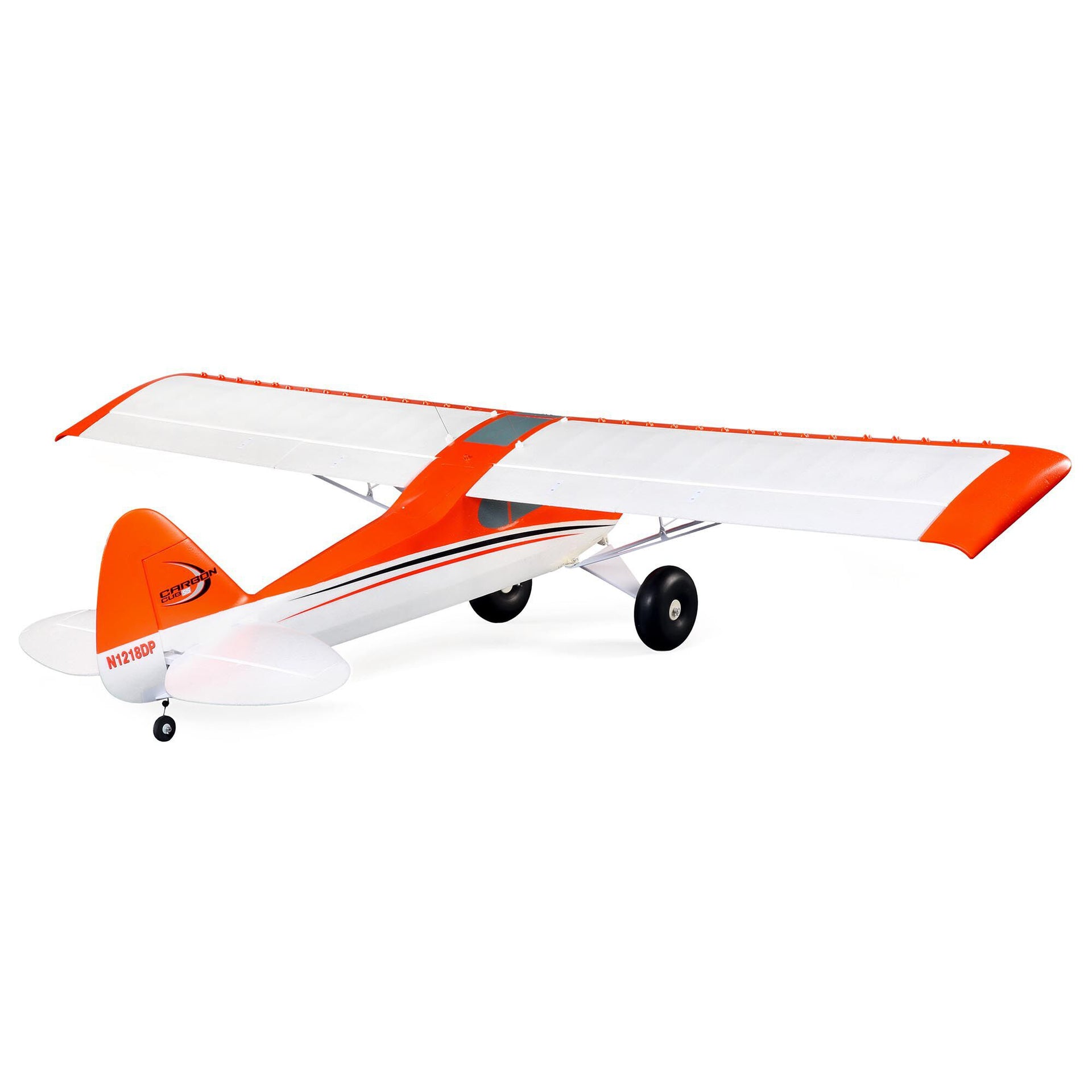

The original Carbon-Z® Cub was ground-breaking and created a new category for large-scale, electric-powered models. Based on a platform that was known for legendary versatility, its lightweight and exceptionally strong, composite-reinforced and hollow-core design was mostly factory-finished and assembled so it was easier for more pilots to go "BIG" than ever before. The E-flite® Carbon-Z Cub SS 2.1m is an updated and refined version of the original, equipped with a long list of new features for improved flight performance, capabilities and convenience so you can enjoy a giant-scale flying experience unlike any other.
Features
- An updated and refined version of the ground-breaking and category-creating original Carbon-Z Cub
- Giant-scale 84"/2.1m wingspan with lightweight and exceptionally strong composite-reinforced, hollow-core Carbon-Z construction
- Drooped wing tip design increases wing and aileron area for significantly improved slow speed performance and control
- Thumbscrews with decorative gas caps and snap-on antennas to easily install/remove the two-piece wing without tools
- Modified flap design allows them to travel both ways for full-span aileron and other mixing options
- Articulated and shock-absorbing landing gear with improved and strengthened mounts
- Even larger oversized, tundra-style wheels with softer tires for better ground handling
- Fully-molded top and bottom landing gear covers for a more scale-like appearance
- More secure rear mount and cross braces for the optional floats (sold separately)
- Quick-release, multi-position battery mounting tray (inspired by Morgan Mill RC) fits 4–6S 3200–7000mAh batteries
- Improved motor design with added bearing for smoother, more reliable performance
- 15x7 propeller molded from material that better maintains balance and stiffness
- IC5 connector (compatible with EC5 connectors) on the 60-amp ESC for better and more reliable power delivery
- Vibrant, high-visibility Carbon Cub SS Signature trim and color scheme
- Spektrum™ AR637TA 6-Channel AS3X & SAFE Telemetry Receiver
- Easy to fly with innovative, optional-use SAFE® Select flight envelope protection
- The unmatched stability and locked-in feel of exclusive AS3X® technology
- Six factory-installed digital, metal-geared servos with ball-link equipped linkages
- Convenient push-button released, top-mounted hatch for easy battery access
- Extremely wide scale and mild to beyond-scale aerobatic and wild flight envelope
- Tow up to 3-meter span sailplanes with the included aerotow mechanism (servo sold separately)
Overview
The E-flite® Carbon-Z® Cub SS 2.1m makes it easier than ever to enjoy a truly unique and versatile giant-scale flying experience. Based on the original Carbon-Z Cub, it's equipped with an abundance of new convenience, capability and flight performance-improving features. An updated wing design with drooped tips adds wing and aileron area for significantly improved slow speed handling, performance and control. The modified flap design allows them to travel both ways for full-span aileron and other mixing options, and thumbscrews make it easier to install and remove the two-piece wing without tools.
Articulated and shock-absorbing landing gear, equipped with even larger oversized tundra-style wheels with softer tires, offers better ground handling that soaks up the bumps of rough surfaces. The push-button released, top-mounted hatch offers convenient and easy access to the battery compartment – which now holds a quick-release, multi-position battery mounting tray that fits 4S to 6S 3200–7000mAh batteries. An improved motor design featuring an additional bearing, plus a propeller molded from material that better maintains balance and stiffness, results in smoother and more reliable power system performance. The composite-reinforced, hollow-core airframe arrives mostly factory-finished and assembled, and the installed digital, metal-geared servos with ball-link equipped linkages deliver crisp and precise control.
So whether you fly it slow and scale, or perform beyond-scale vertical takeoffs and aerobatics, the Carbon-Z Cub SS will offer unexpected levels of versatility, capability and performance you'll enjoy flight after flight!
More Capability

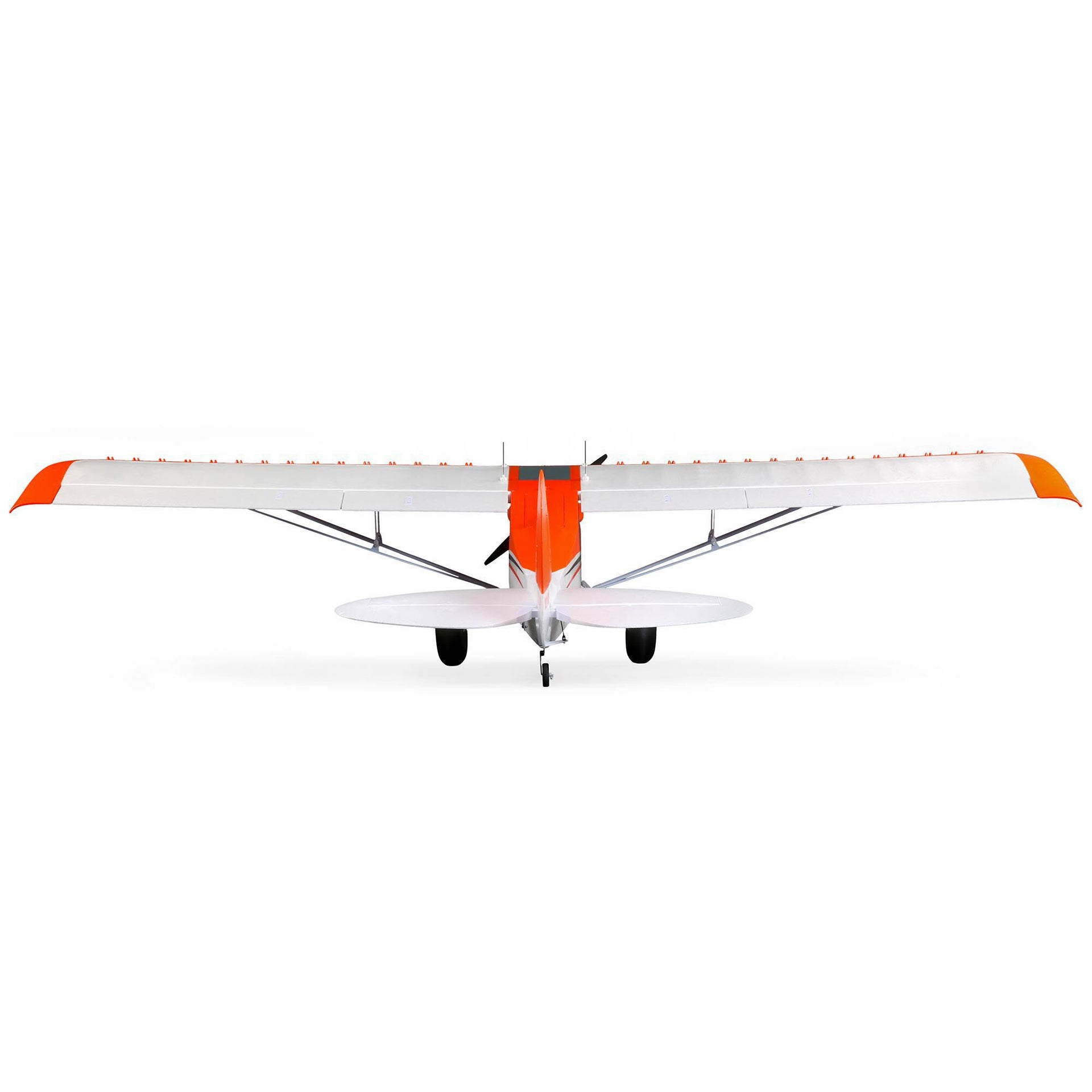

The Carbon-Z Cub SS features an updated wing design with drooped tips that adds wing and aileron area for better slow speed handling, performance and control – similar to the Plane Booster Wing Tip Set CubCrafters offers for many Cub models. Plus the modified flap design allows them to travel both ways for full-span aileron and other mixing capabilities.
More Convenience

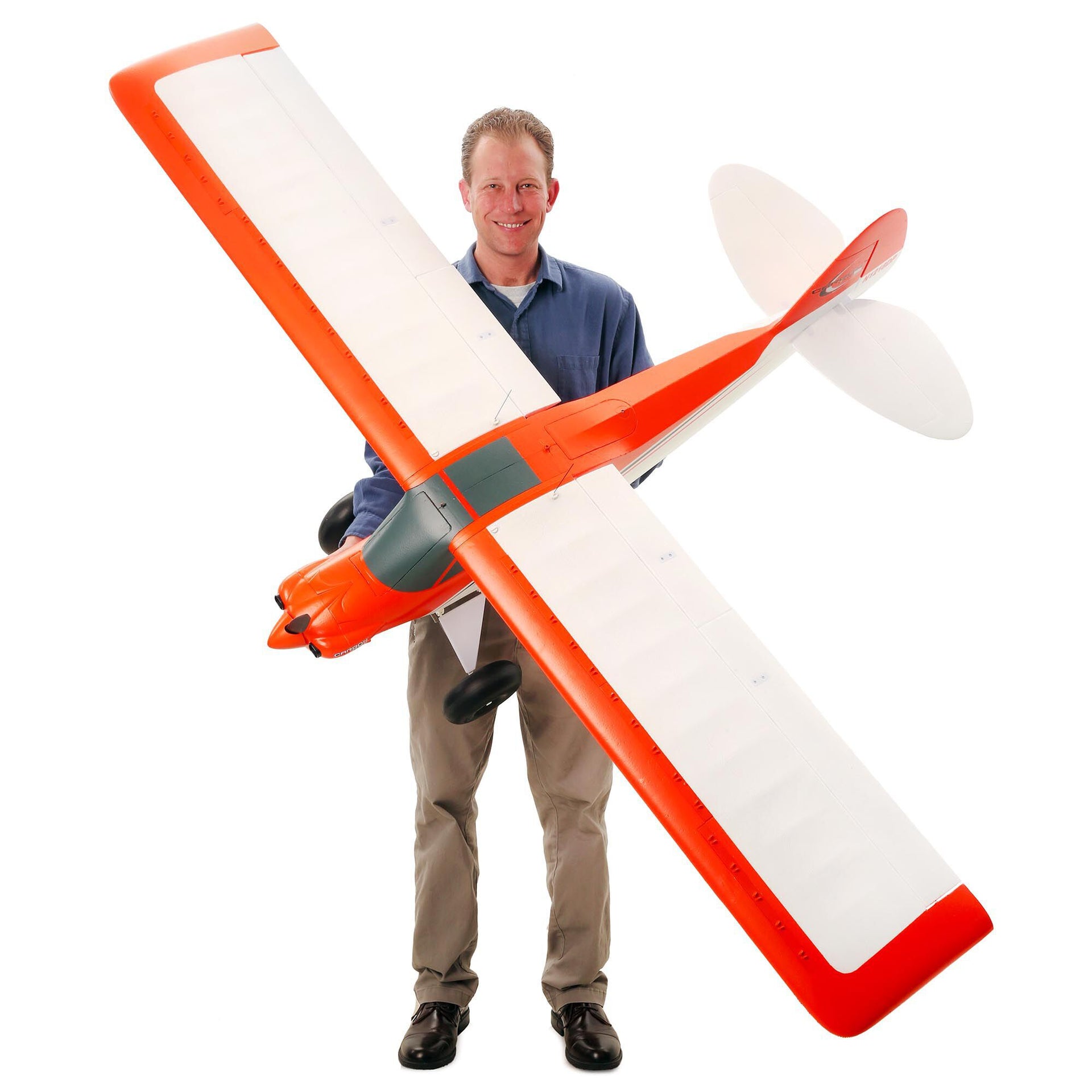

Even with its giant-scale 84"/2.1m wingspan, the Carbon-Z Cub SS is easy to store and transport because of the two-piece wing. And now it's more convenient than ever because no tools are required for field assembly/disassembly with the new thumbscrews. There are even decorative gas caps and antennas that snap onto the thumbscrews for added scale detail.
More Capable Gear

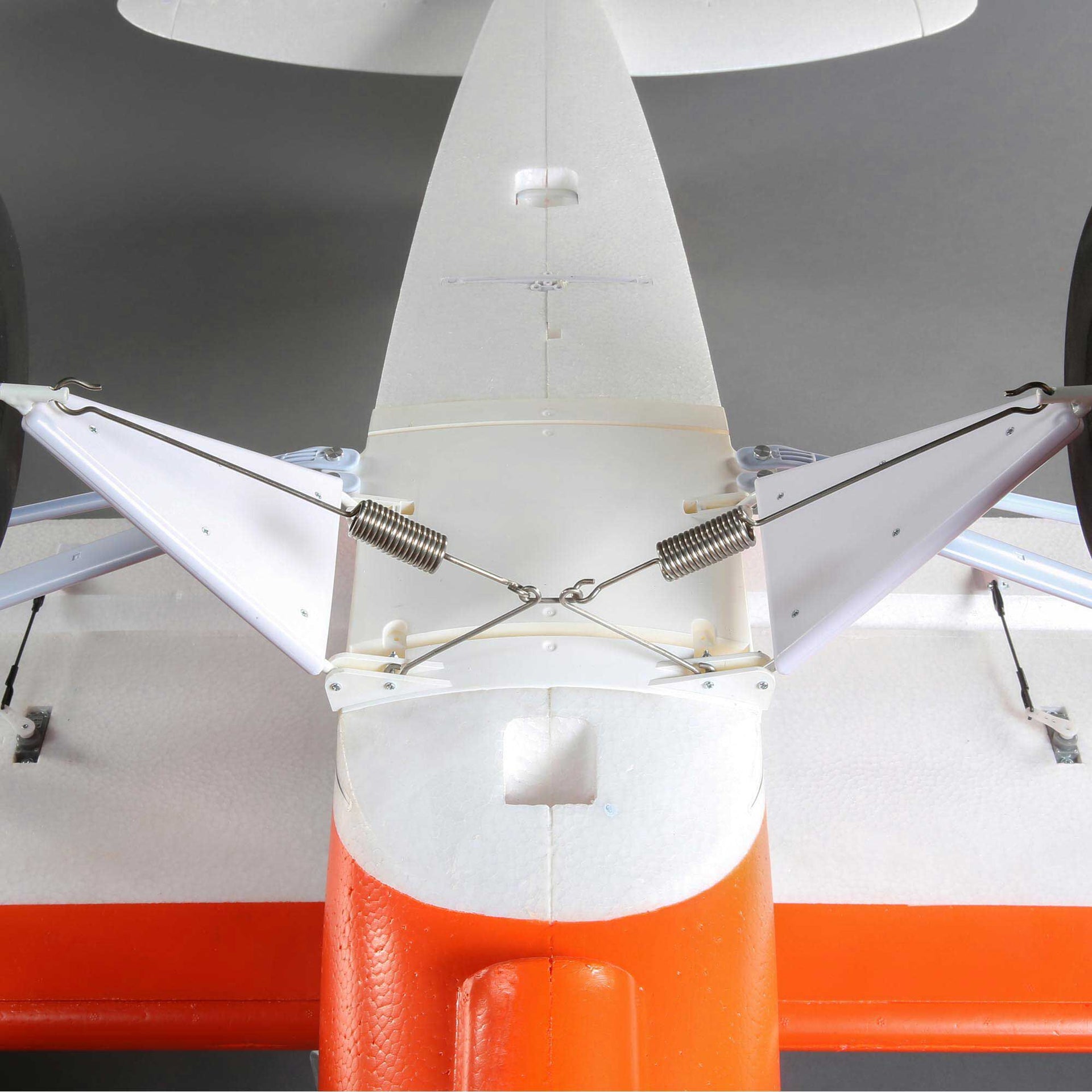

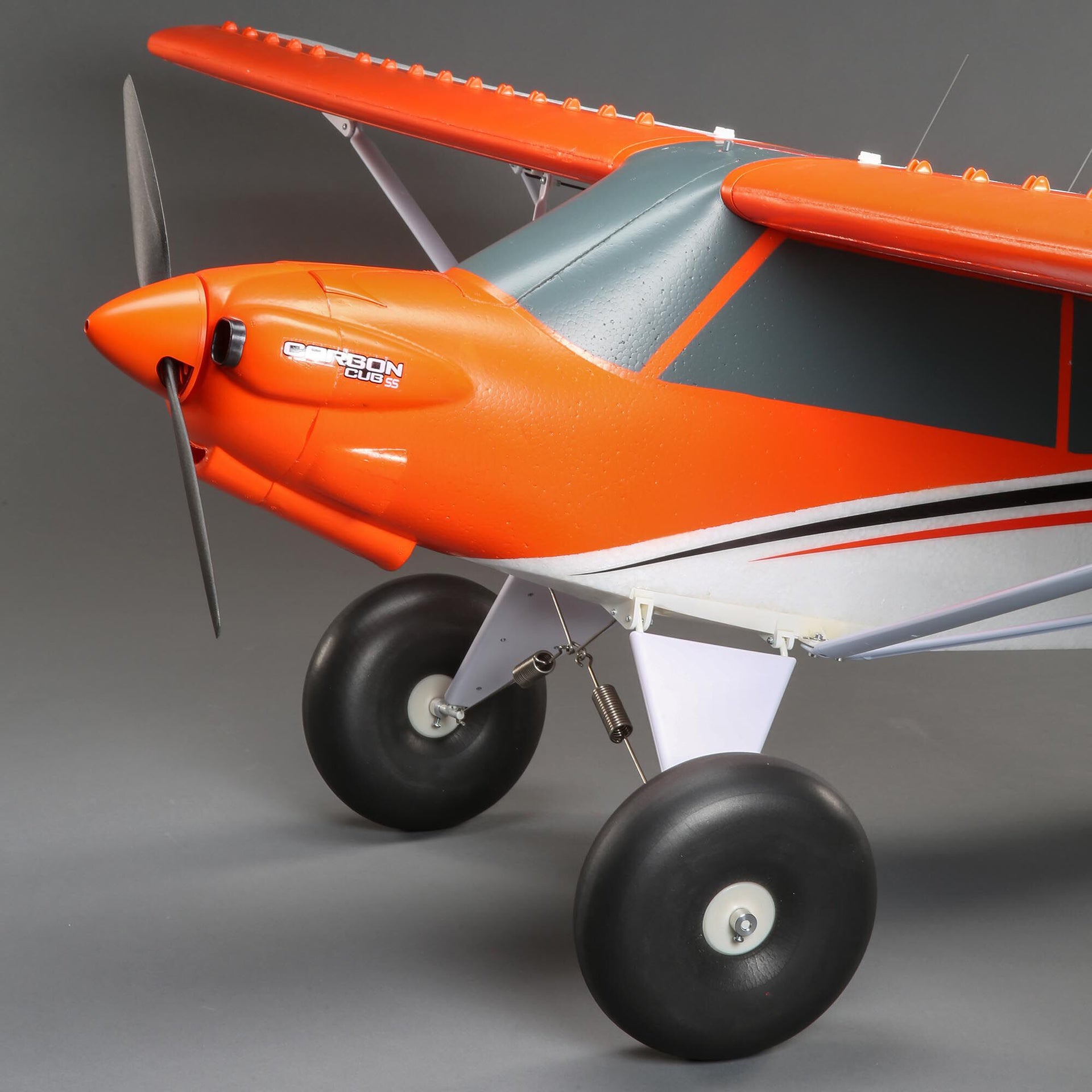

The new articulated and shock-absorbing landing gear, which is equipped with even larger oversized tundra-style wheels with softer tires, offers better ground handling that easily soaks up the bumps of rough surfaces. An improved mounting design for the main gear makes it stronger than before, and fully-molded top and bottom landing gear covers deliver a more scale-like appearance.
More Gear Options

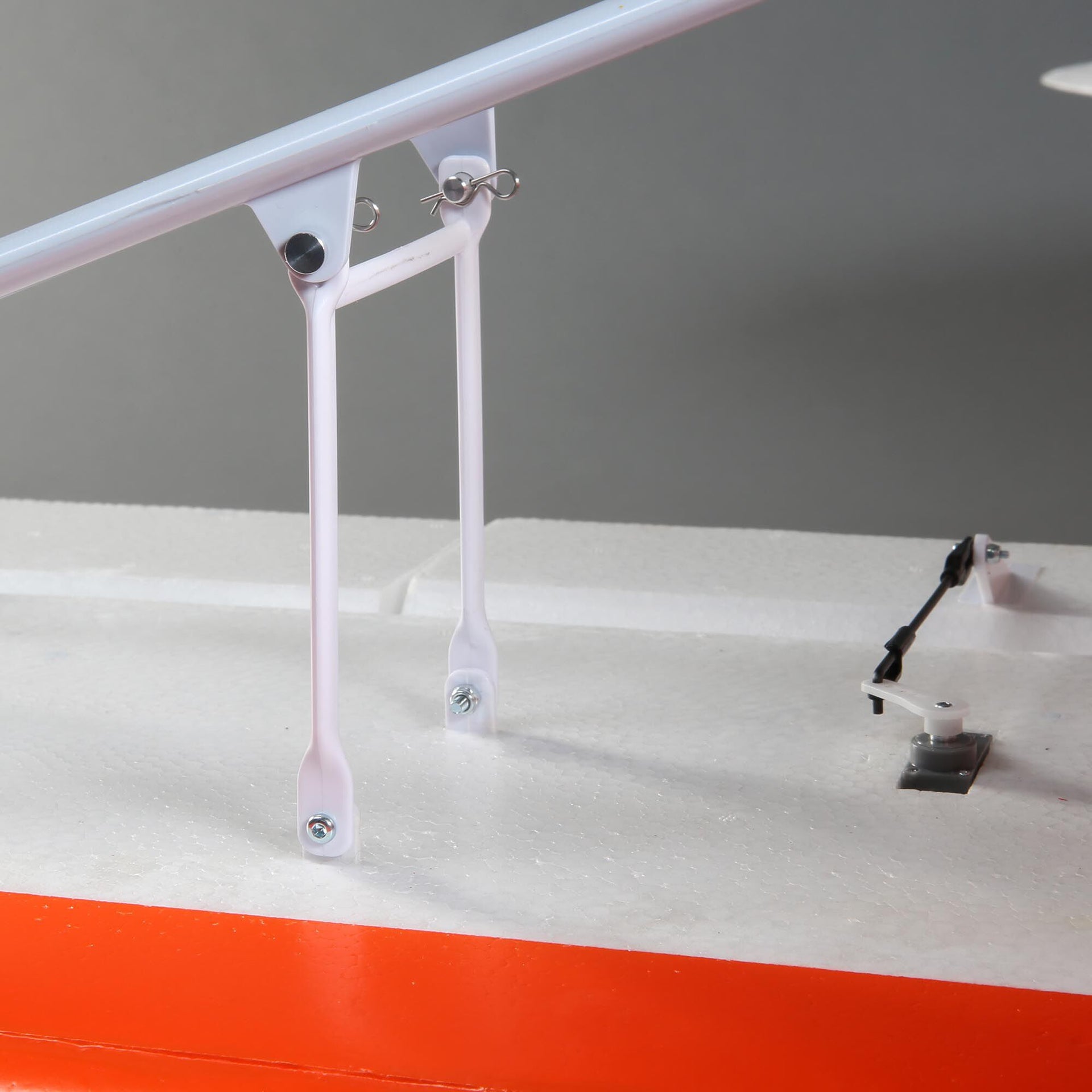

An optional float set (sold separately) that includes a servo and functional water rudder, plus a new mounting/strut set (also sold separately) that attaches with a more secure rear mount and cross braces. Installation is easy, and you have the option to switch between floats and wheels in minutes. 6S LiPo recommended if taking off from water.
More Practicality
The push-button released, top-mounted hatch offers convenient and easy access to the battery compartment that holds a new quick-release, multi-position battery mounting tray (inspired by Morgan Mill RC) that fits most 4S to 6S 3200–7000mAh batteries.
More Reliability

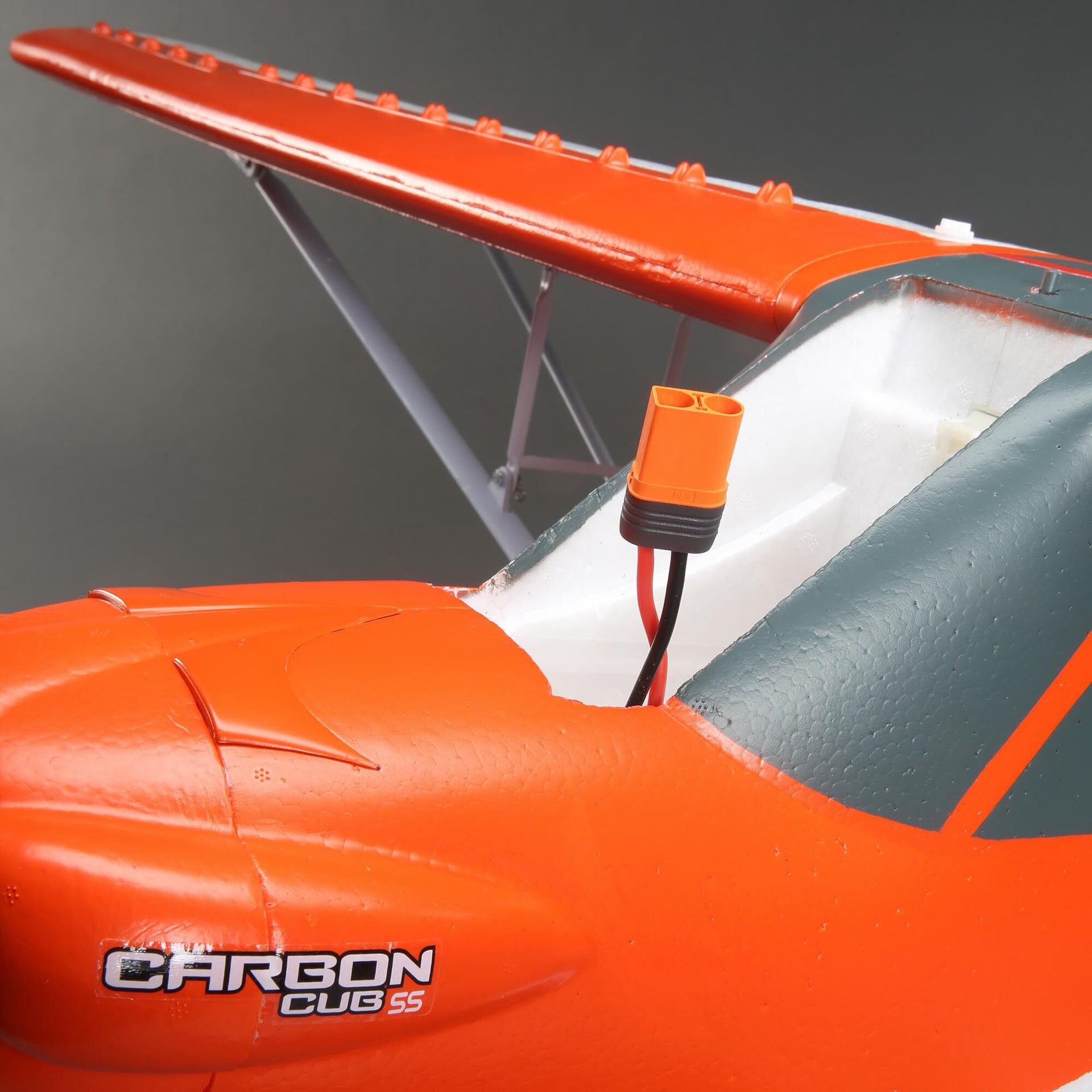

The updated power system features a motor with an improved design that includes an additional bearing, along with a propeller that's molded from material that better maintains balance and stiffness, to deliver smoother and more reliable performance. Plus the ESC is now equipped with an IC5 connector, which is also compatible with EC5 connectors, for better and more reliable power delivery.
Durable Precision
The lightweight and exceptionally strong airframe features composite-reinforced, hollow-core Carbon-Z construction. Best of all it arrives mostly factory-assembled and finished in a vibrant, high-visibility Carbon Cub SS Signature trim and color scheme. It also arrives with factory-installed digital, metal-geared servos and ball-link equipped linkages that deliver crisp and precise control.
Versatile Performance

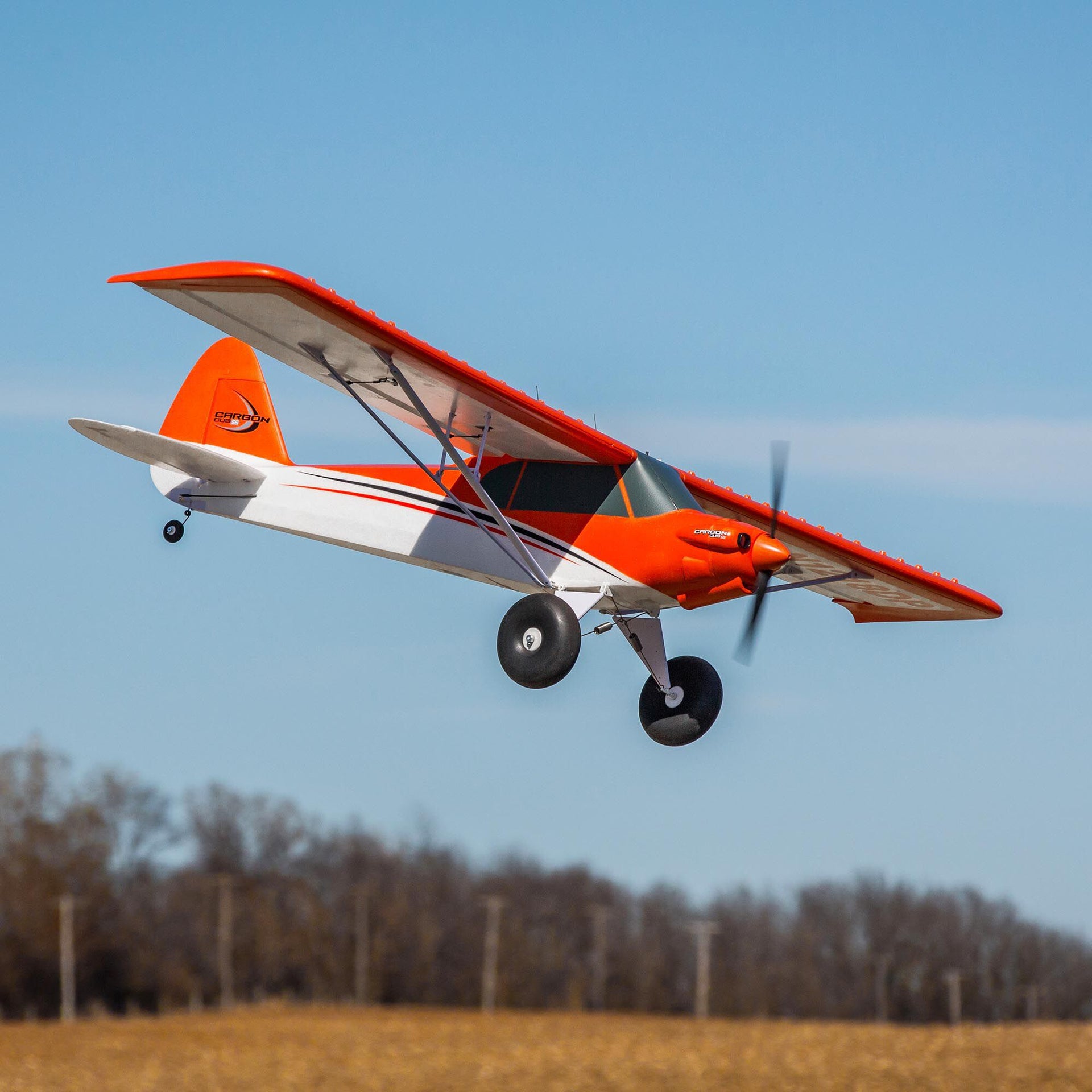

From smooth and stable slow flight to beyond-scale aerobatics and everything in between, the Carbon-Z Cub SS has an extremely wide flight envelope that's perfect for first-time giant-scale and experienced pilots alike.
Specs
- Airfoil Shape
- Modified Clark-Y
- Approximate Assembly Time
- Less than 1 hour
- Approximate Flight Time
- 4 - 10 minutes
- Battery
- Sold Separately
- CG (Center of Gravity)
- 4.1 - 4.7" (105 - 120mm) from leading edge of wing measured at fuselage
- Charger
- Sold Separately
- Completion Level
- Bind-N-Fly Basic
- Flaps
- Yes
- Landing Gear
- Fixed main with steerable tail wheel
- Minimum Required Radio
- 4-channel
- Motor Size
- BL50
- Motor Type
- Brushless
- Power Type
- Electric
- Product Length
- 56.3" (1430 mm)
- Propeller Size
- 15x7E
- Radio
- Sold Separately
- Receiver
- Included
- Recommended Motor Battery
- 4-6S 4000 - 7000mAh LiPo, 6S LiPo recommended if taking off from water
- Servos
- Included
- Speed
- 50mph (80kph)
- Speed Control
- Included
- Spinner Size
- 2.4" (61 mm)
- Steering
- Steerable tailwheel
- Technology
- SAFE Select
- Trim Scheme Colors
- White, orange, black and gray
- Wing Area
- 1130 sq in (72.9 sq dm)
- Wing Loading
- 16.6 - 19.3 oz/sq ft (50.7 - 59.0 g/sq dm)
- Wingspan
- 84.6" (2149 mm)
