SOFE32MR148 Progressive Springs 32x14mm Front Set

Optional Multi rate Spring Set for the Losi 1/14 Shocks used on the Front of the Losi Mini 8ight

Spring Steel Construction
PROGRESSIVE Springs, PROGRESSIVE Rate allow the optimum spring rate for each application. These multi-rate springs are soft at the beginning to soak up the small bumps, but transitions (crosses over) to the stiff part of the rate to resist bottoming on jumps and other big "hits. "

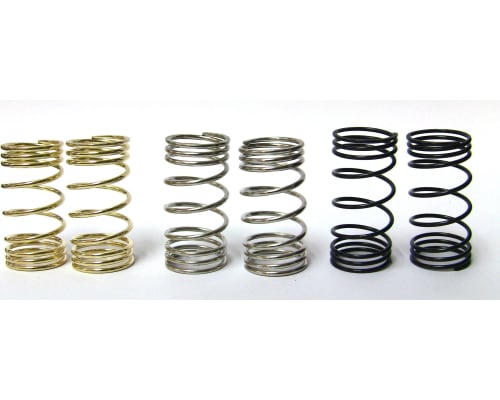

Two 1.0mm wire black PROGRESSIVE Rate Springs
Two 1.2mm wire Silver PROGRESSIVE Rate Springs
Two 1.3mm wire Gold PROGRESSIVE Rate Springs

Black
length: 32mm
Inner diameter: 14 mm
Wire diameter:1.00Turn 9
Silver
length: 32mm
Inner diameter: 14mm
Wire diameter:1.10Turn 9
gold
length: 32mm
Inner diameter: 14mm
Wire diameter:1.3Turn 9

Hot Racing progressive springs each coil is spaced differently and have a variable spring rate. When free, it is easy to compress progressive springs for first few mm. As you apply more forces, coil on a progressive spring come closer. After a certain point, coil at both end of progressive springs becomes inactive, and that makes the spring stiffer. Apply more forces to mid part of the progressive spring then it becomes stiffer because as the number of active coils in a spring decreases, the spring rate increases. So, progressive springs may both be sensitive to very small bumps on the road, while giving the stiffness you need during hard braking and turning.
