22800 1/84 Cutty Sark

HISTORY OF A LEGENDARY SHIP: CUTTY SARK CLIPPER

Discover the Cutty Sark, wooden model of this legendary ship -tea clipper class- of the 19th Century. Built for the tea race and one of the fastest ships of its time, it is preserved as a museum vessel in the town of Greenwich, United Kingdom. Launched in Dumbarton (Scotland) in 1869, Cutty Sark was dedicated in its early years to the tea race, trying to unite China and London in the shortest possible time during eight 'tea seasons'.

In the same year of its launch, the Suez Canal was opened, which made the route much shorter and gave advantage to steamers. It was possible to cross the Suez Canal for a sailboat, but it was difficult and expensive, conditions for sailing in the Red Sea are far from ideal. Later, it would be dedicated to the trade of wool from Australia, being the fastest boat on these routes during a decade, and it also would be used for the transport of goods between Porto, Rio de Janeiro, New Orleans, Lisbon and the Portuguese colonies. Finally, in 1954 it would be transferred to dry dock and become a museum ship.

CONTENTS OF CUTTY SARK SHIP MODEL KIT

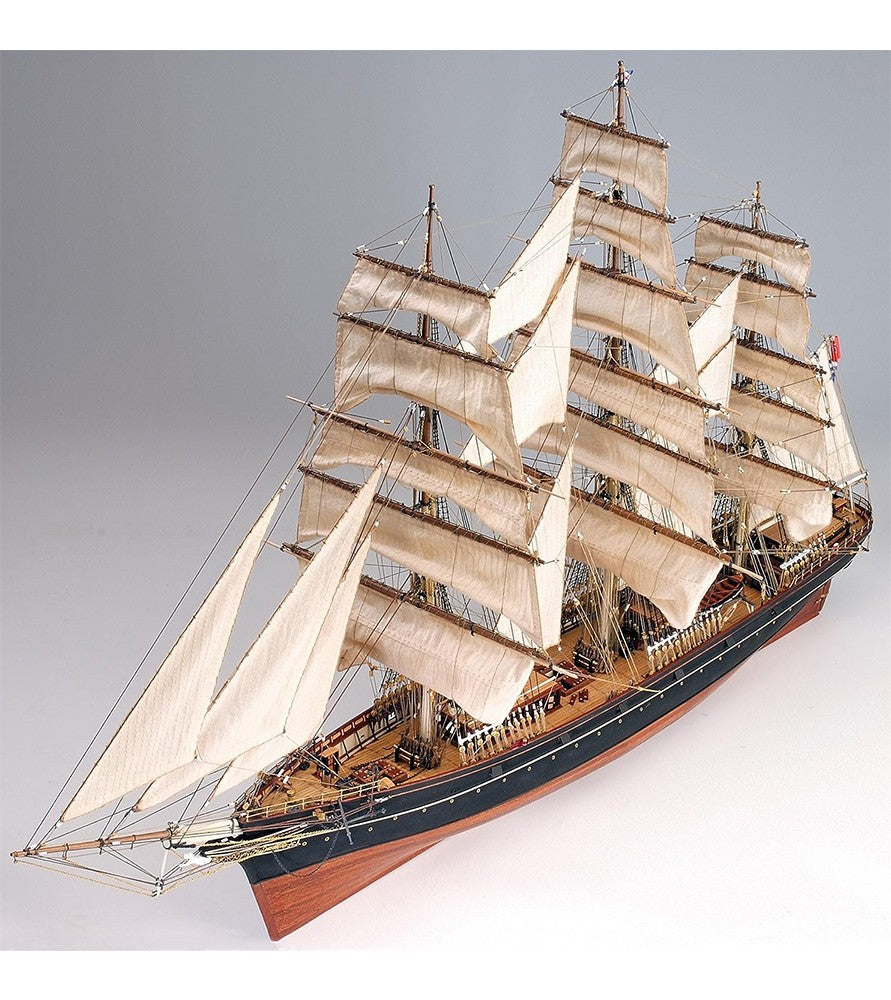

Build your 1:84 scale wooden model ship of the Cutty Sark, legendary clipper. The model of this beautiful sailboat has a system of construction by means of false keel and frames, reason why the assembly of the replica to scale approaches the construction of the real clipper.

The Cutty Sark model ship kit contains high precision laser-cut board parts, hardwoods, brass, cast iron, threads and sails made of cotton ready to be place. As a bonus, it also brings a wooden exhibition base to be built.

For the assembly, you will be able to follow our complete full colour step-by-step guide in 7 languages, accompanied by the drawings of the ship when it’s finished, both of them on DVD format for computer -PC & MAC-. The kit does not include printed instructions. You can also download the digital instructions for free on the button of this product sheet called 'Instructions and Downloadable Contents'.

Paint your scale model of this impressive British ship with its Set of Acrylic Water-Based Paints (277PACK27), sold separately.

Once it is built, this faithful miniature replica measures 40.62'' (1,032mm) length, 13.77'' (350mm) width and 24.56'' (624mm) height.

TECH NOTES
This is the 1/84 Scale Wooden Model Kit of the Cutty Sark from Latina
FEATURES: Mutiple die cut sheets of wood, five different colors and thicknesses
of rigging thread
Brass nails, strips, eyebolts and other brass parts
Sails are pre-cut and sewn, ready to be placed on model
INCLUDES: Written manual, color picture manual, sail diagram sheet and
blueprints
SPECS: Length: 40-19/32" (1032mm)
Beam: 14-2/32" (624mm)
Height: 24-17/32" (624mm)
Scale: 1/84 1/7" = 1ft
REQUIRES: Wood Glue, CA Glue and Epoxy
Sandpaper
Masking Tape
Metric Ruler
Right Angle
Tweezers
Magnifying Glass or glasses
Small Hammer
COMMENTS: Before building, modeler needs to do a complete inventory of the kit
to ensure that no parts are missing
This kit is not for beginners
