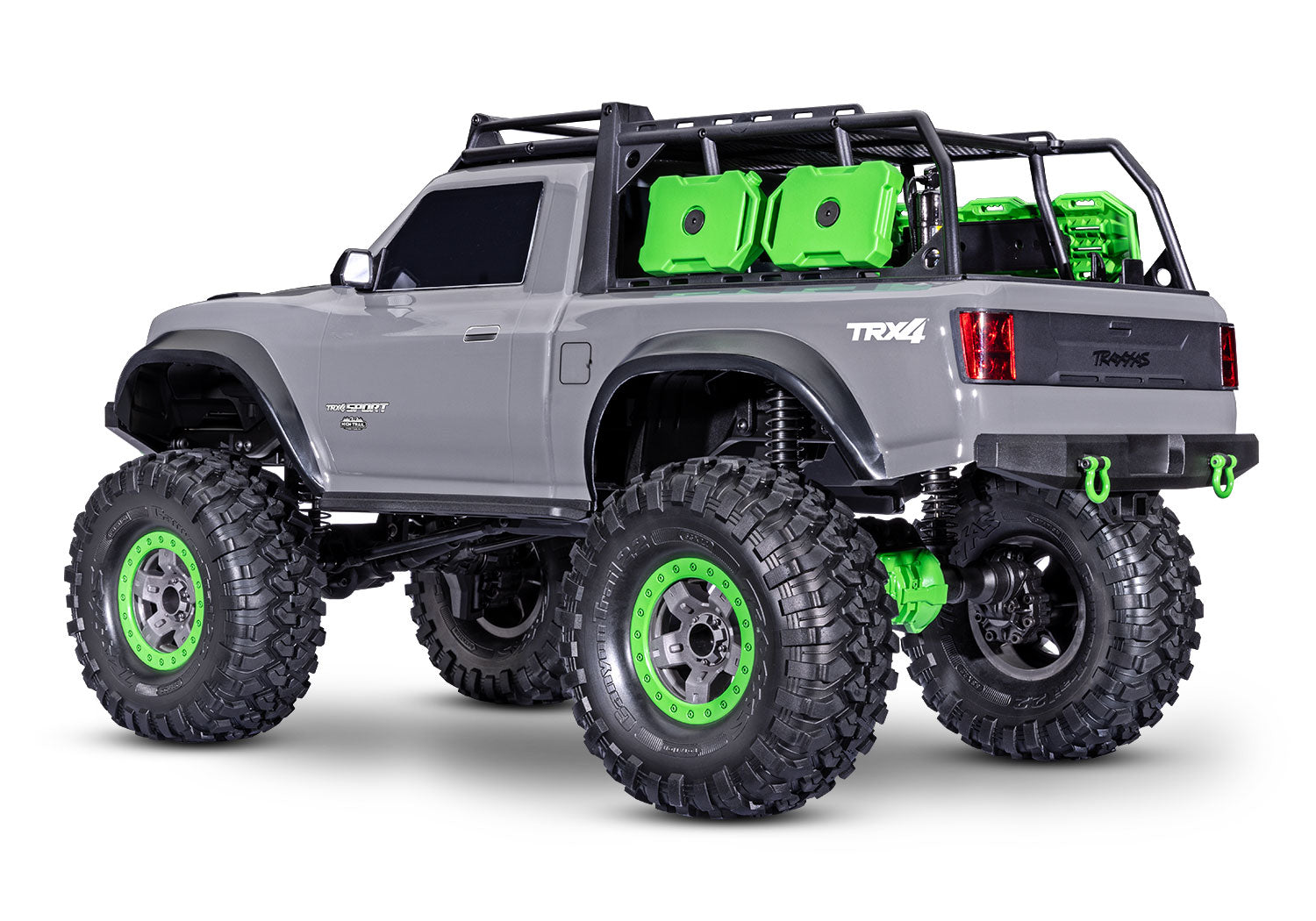

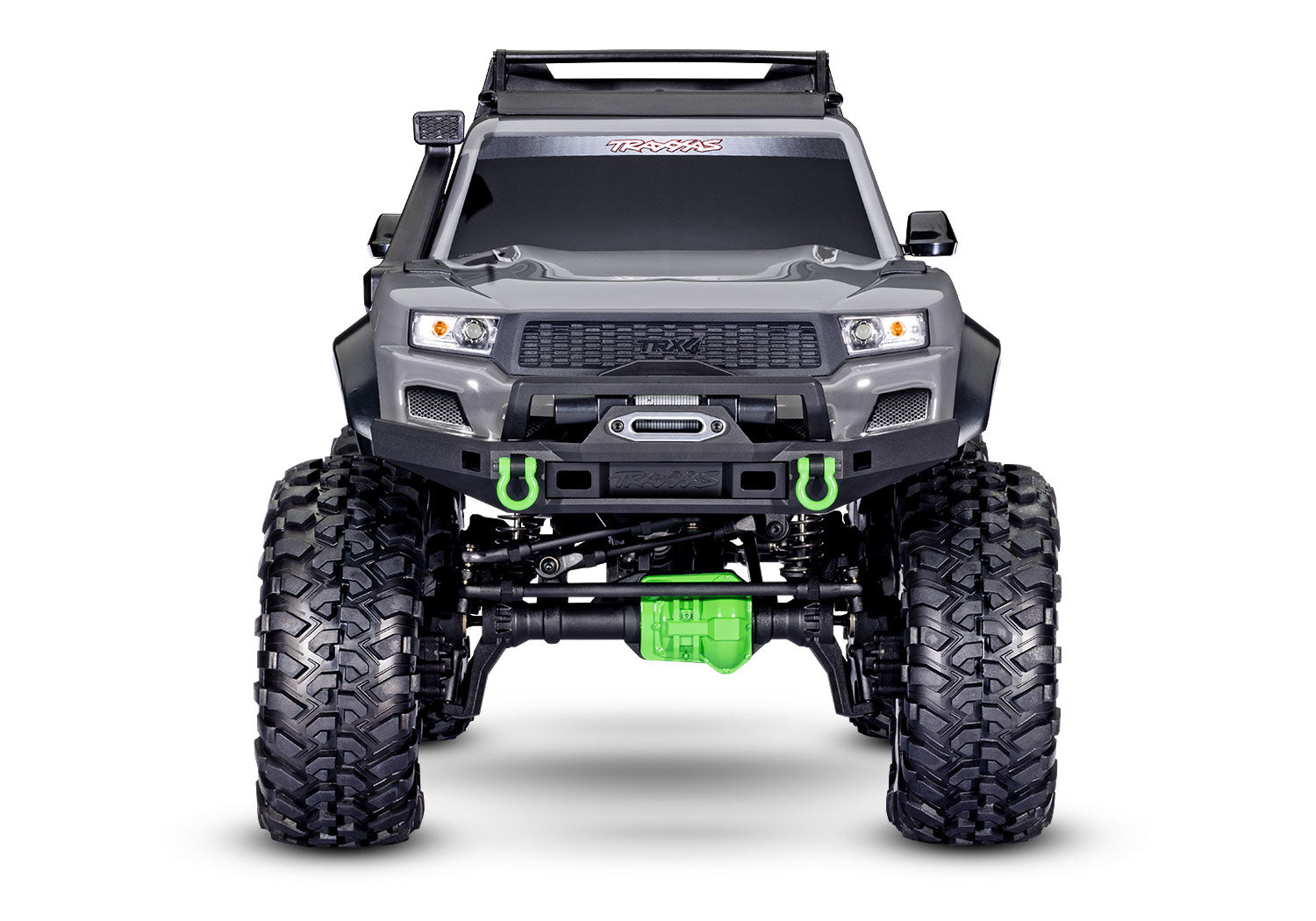

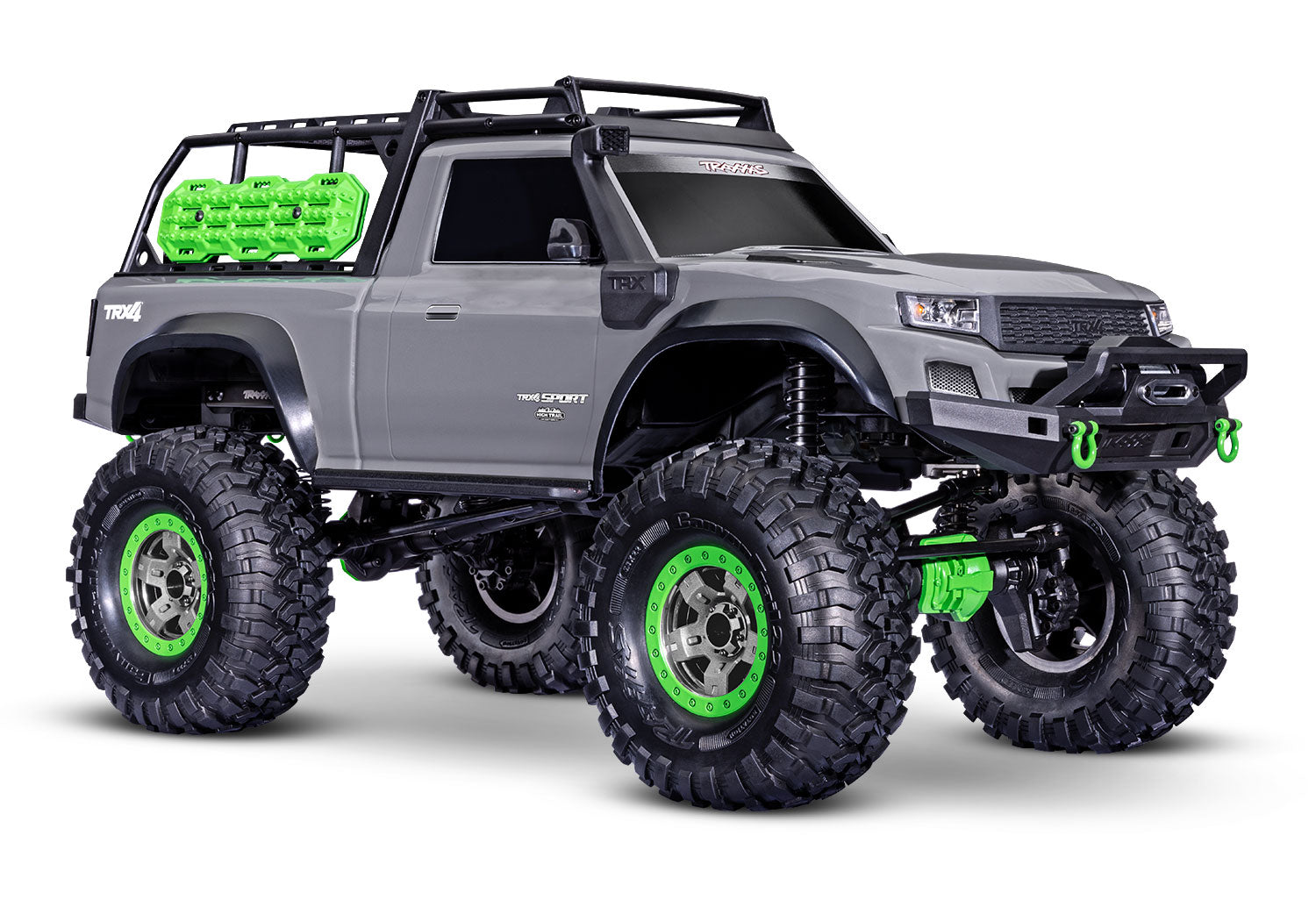

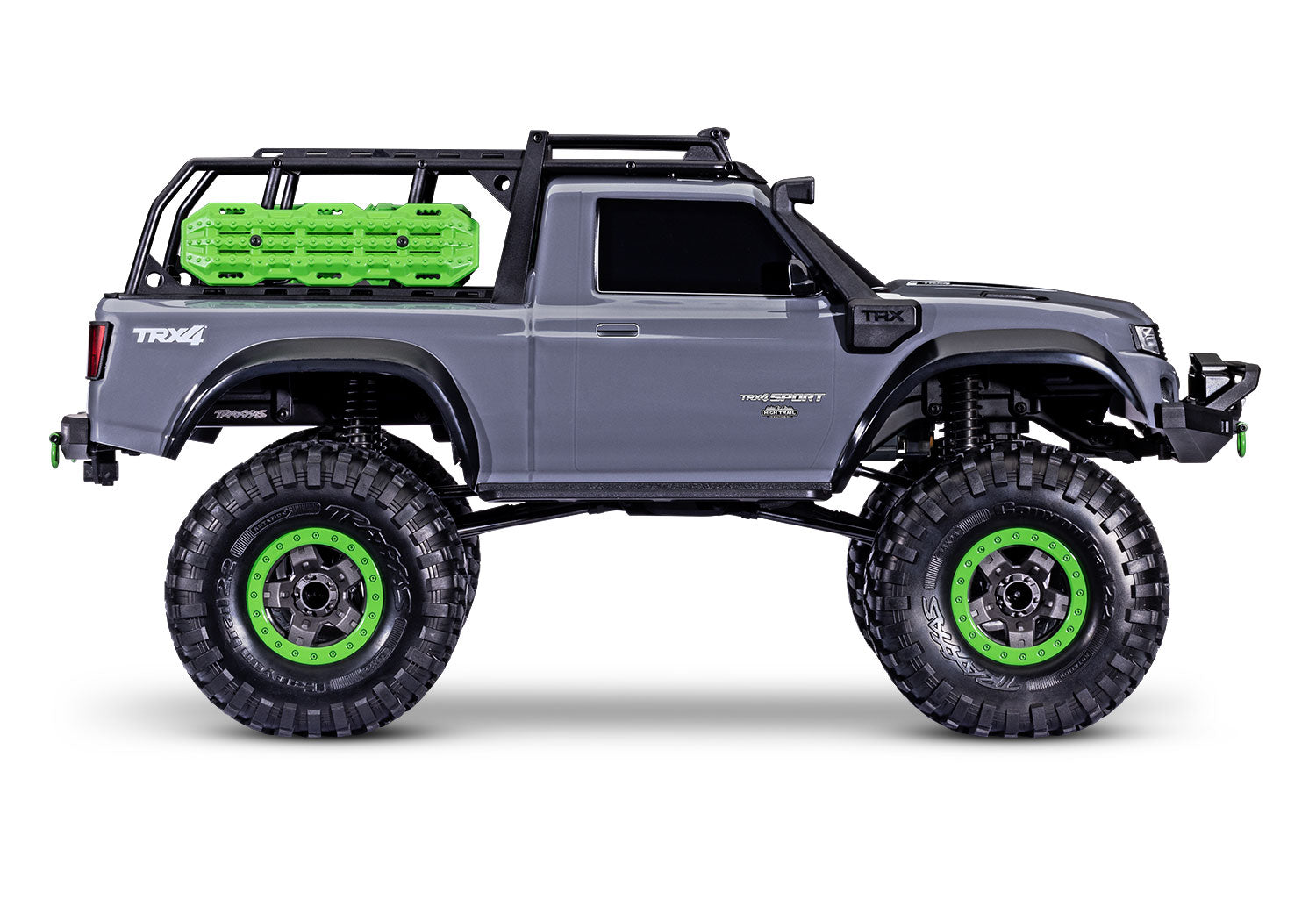

82044-4GRAY Traxxas TRX4 Sport High Trail Gray Limited edition

OUTFITTED FOR ADVENTURE

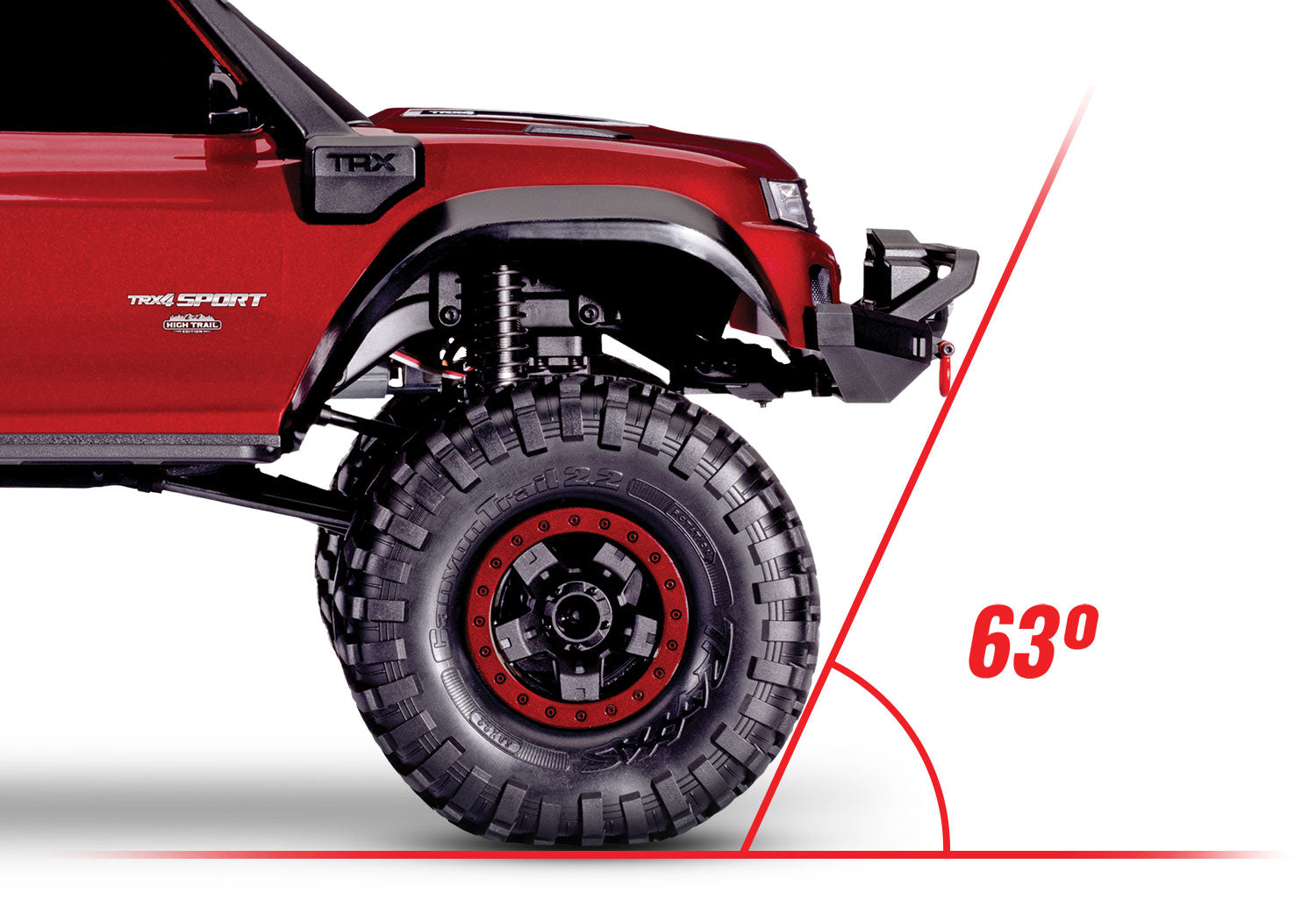

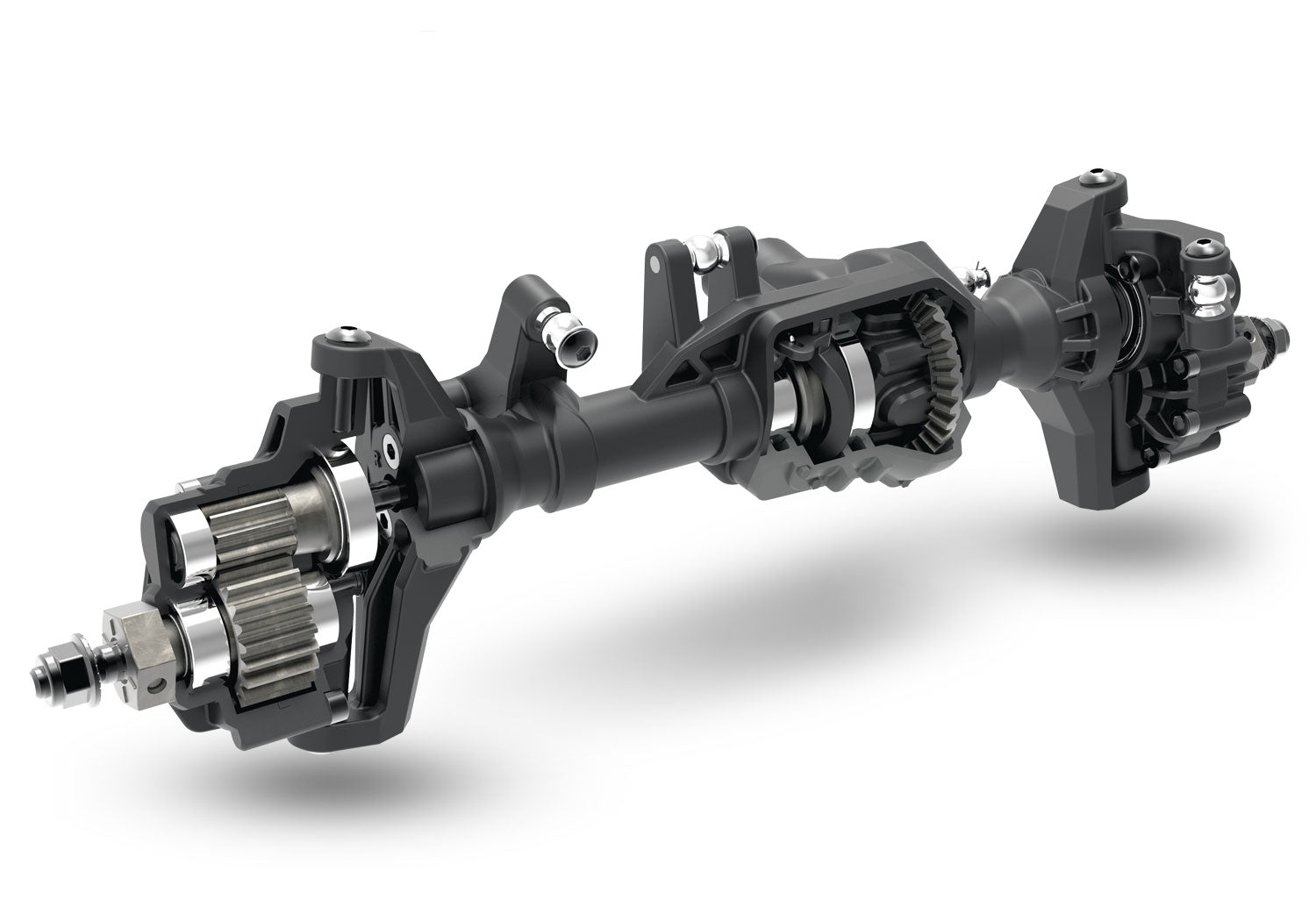

Even the toughest off-road challenges have met their match with TRX-4 Sport High Trail Edition. A factory-installed Long Arm Lift Kit amplifies TRX-4 Sport's performance-focused all-terrain capability with even more ground clearance. High-angle bumpers and fully-locked axles provide nearly unstoppable climbing versatility with the show-stopping looks of the High Trail Edition’s rugged Expedition Rack and scale accessories.

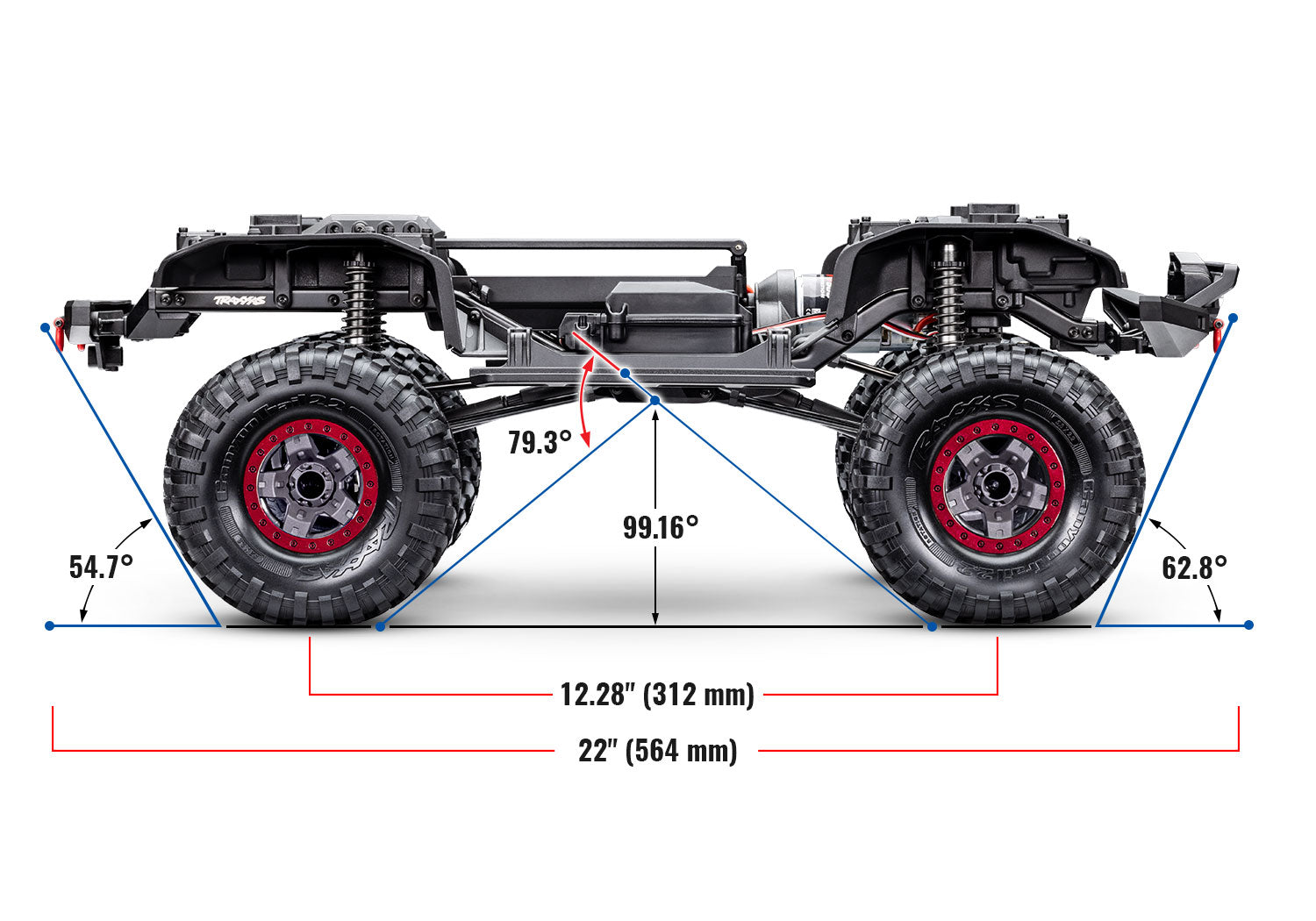

LIFTED PERFORMANCE

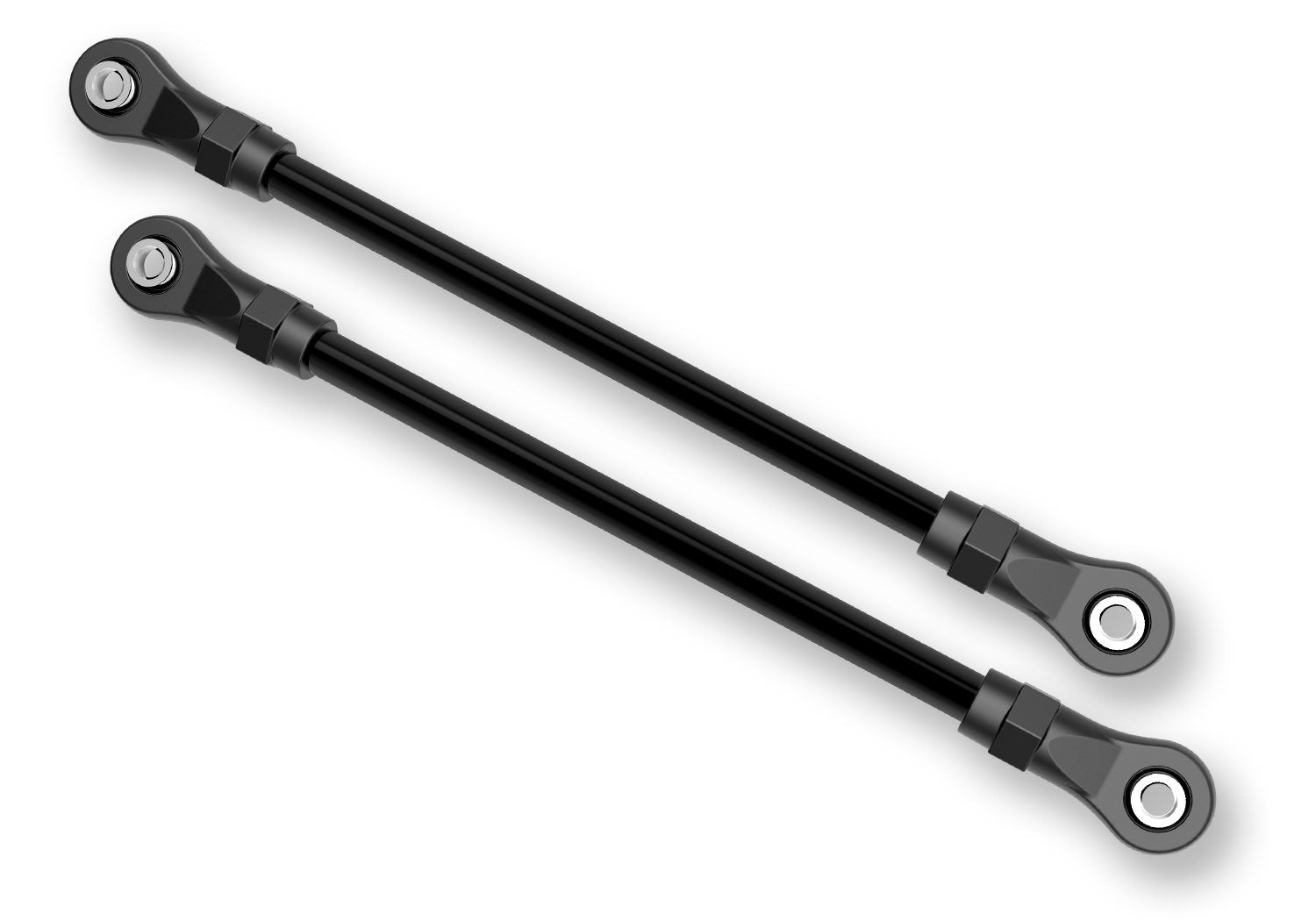

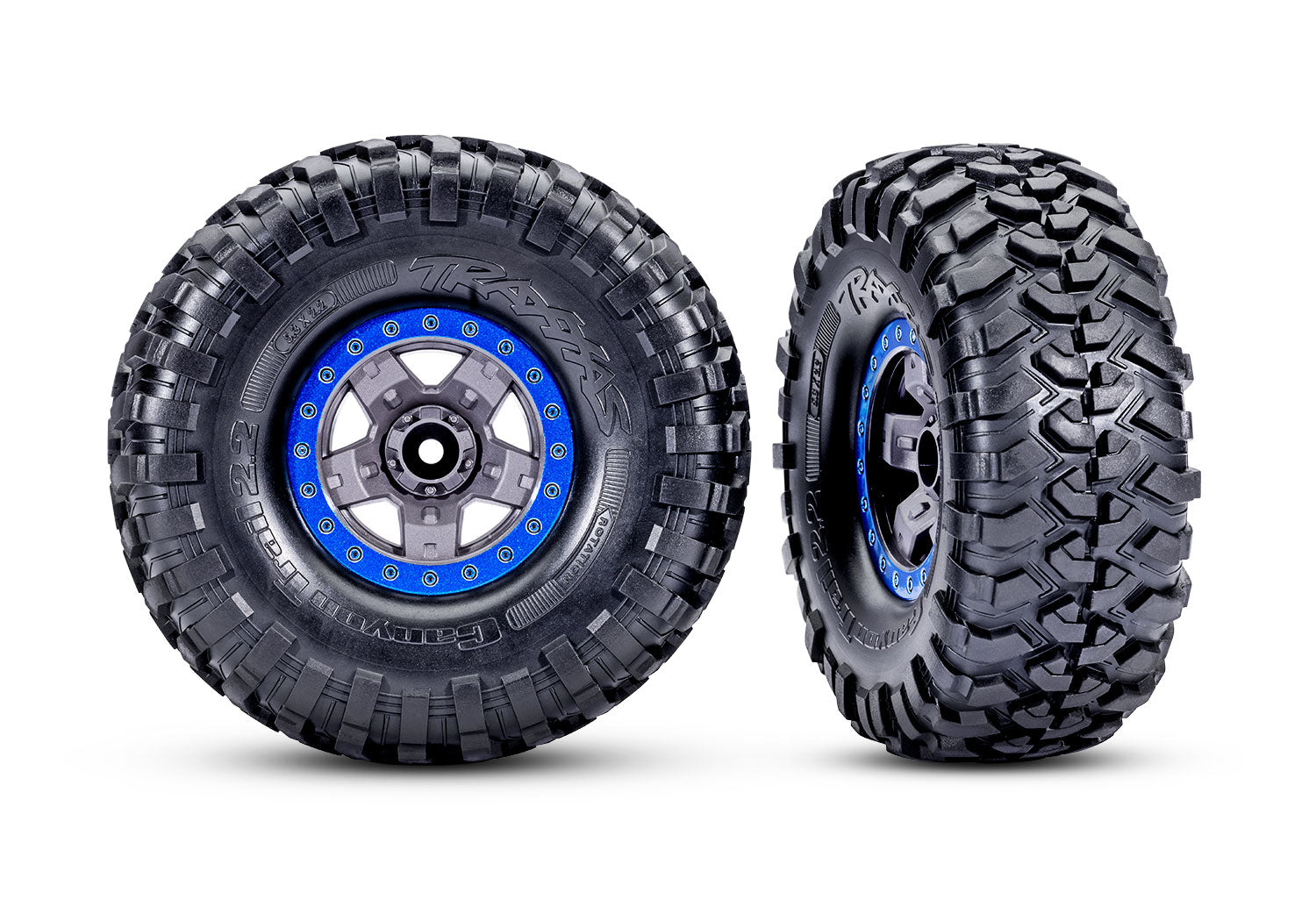

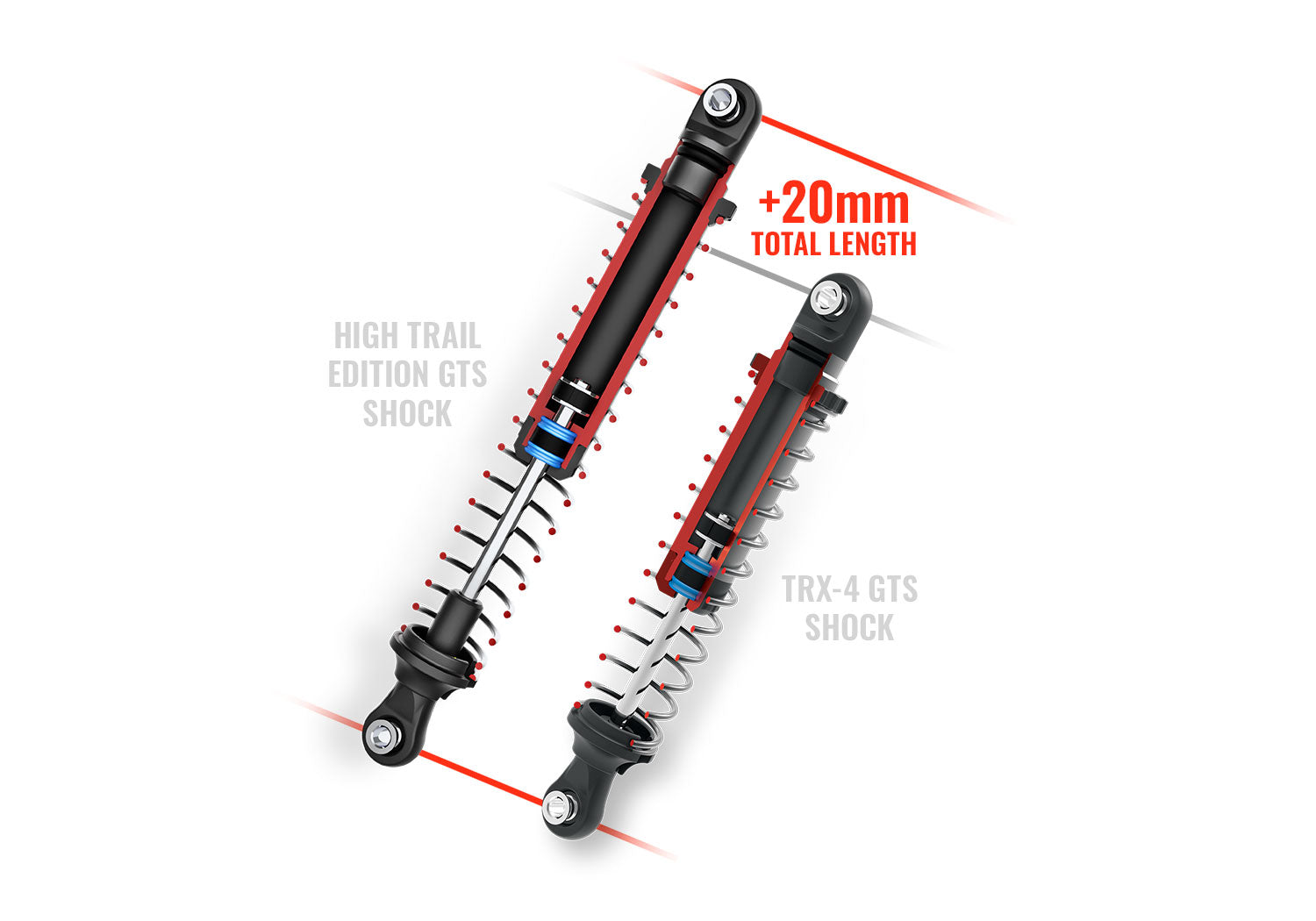

The High Trail Edition TRX-4 Sport gets you up and over obstacles with a factory-installed Long Arm Lift Kit for over an inch more ground clearance than the standard TRX-4. Oversize Canyon Trail tires ride on 2.2" black 5-spoke wheels to tame the most technical trails with extreme all-terrain traction.

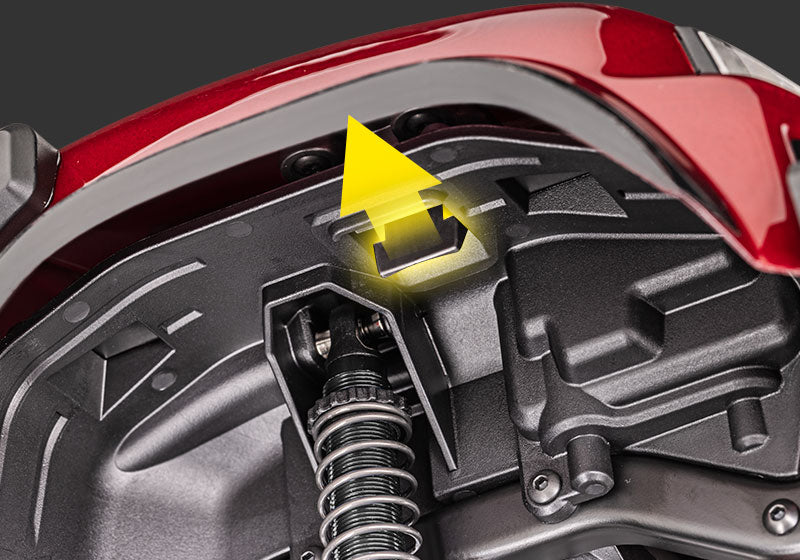

CLIPLESS BODY MOUNTING
New to TRX-4 Sport, the High Trail Edition's clipless body combines clean flowing lines with secure latching convenience. TRX-4 Sport’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.

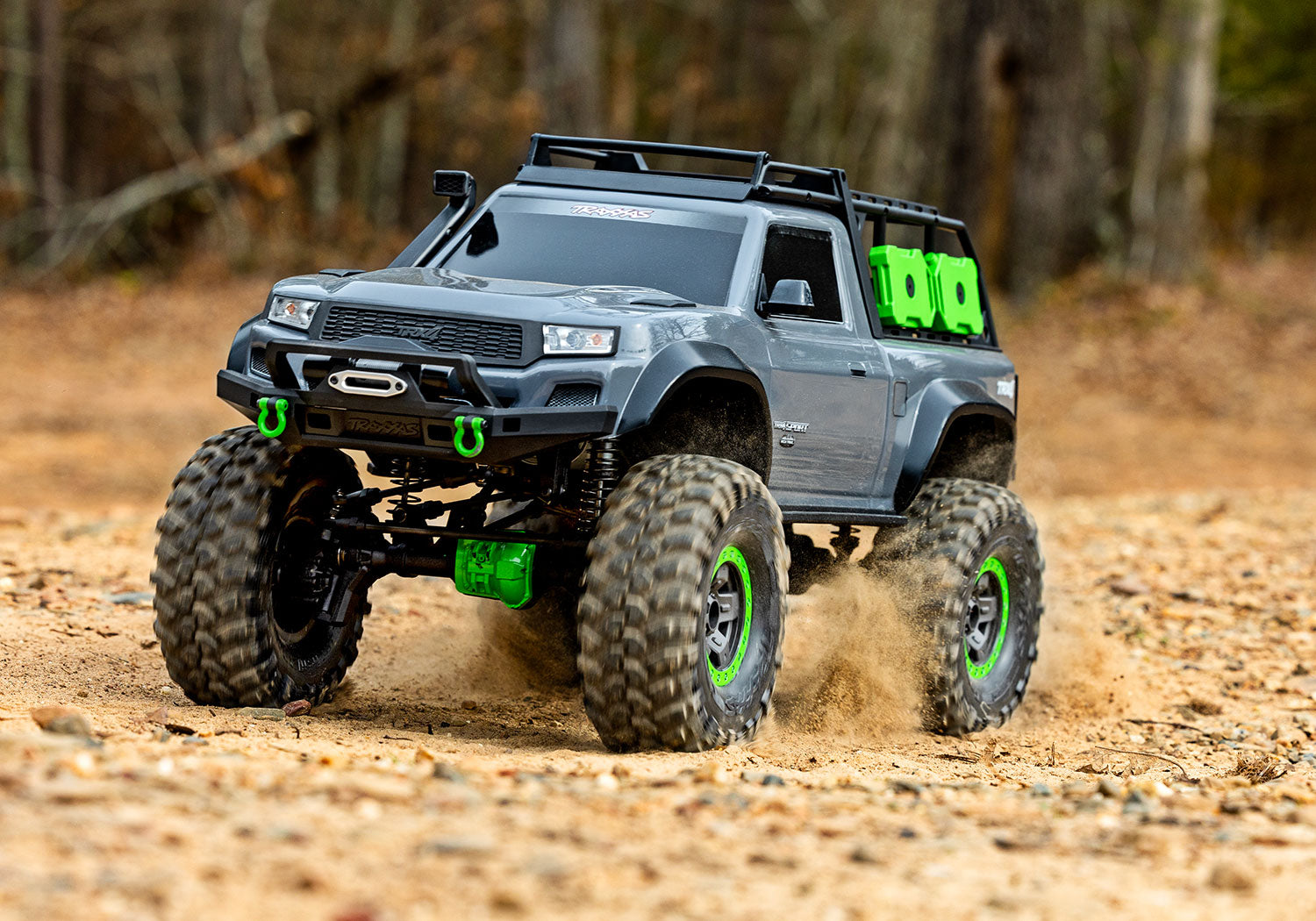

SCALE ACCESSORIES

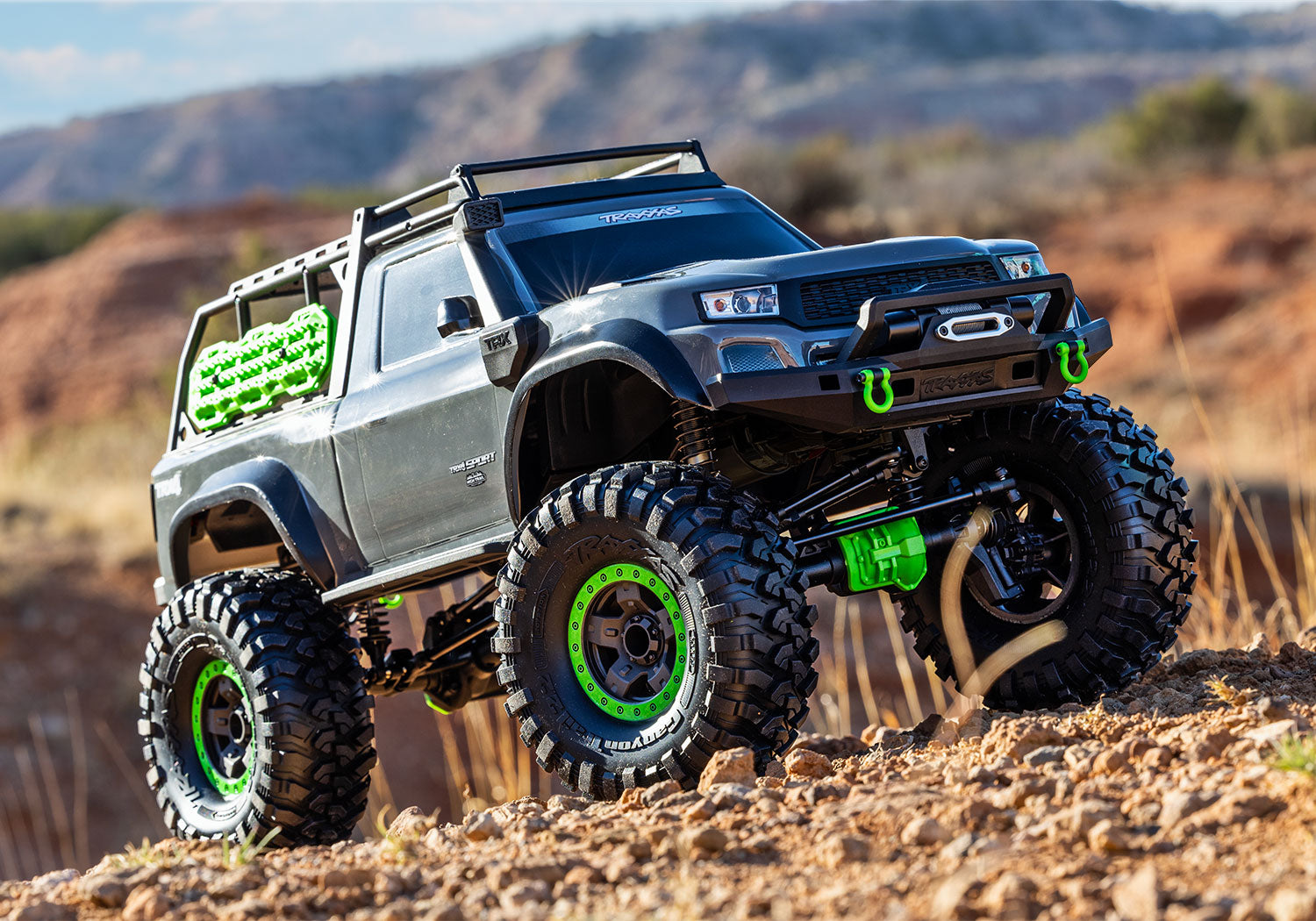

TRX-4 High Trail Edition comes fully outfitted for adventure with a tough Expedition Rack and molded accessories. A replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and fuel canisters provide extreme scale detail with inner fenders for a realistic appearance.

Hex Size:	12mm
Speed Control:	XL-5 HV
Motor (electric):	21T Reverse Rotation

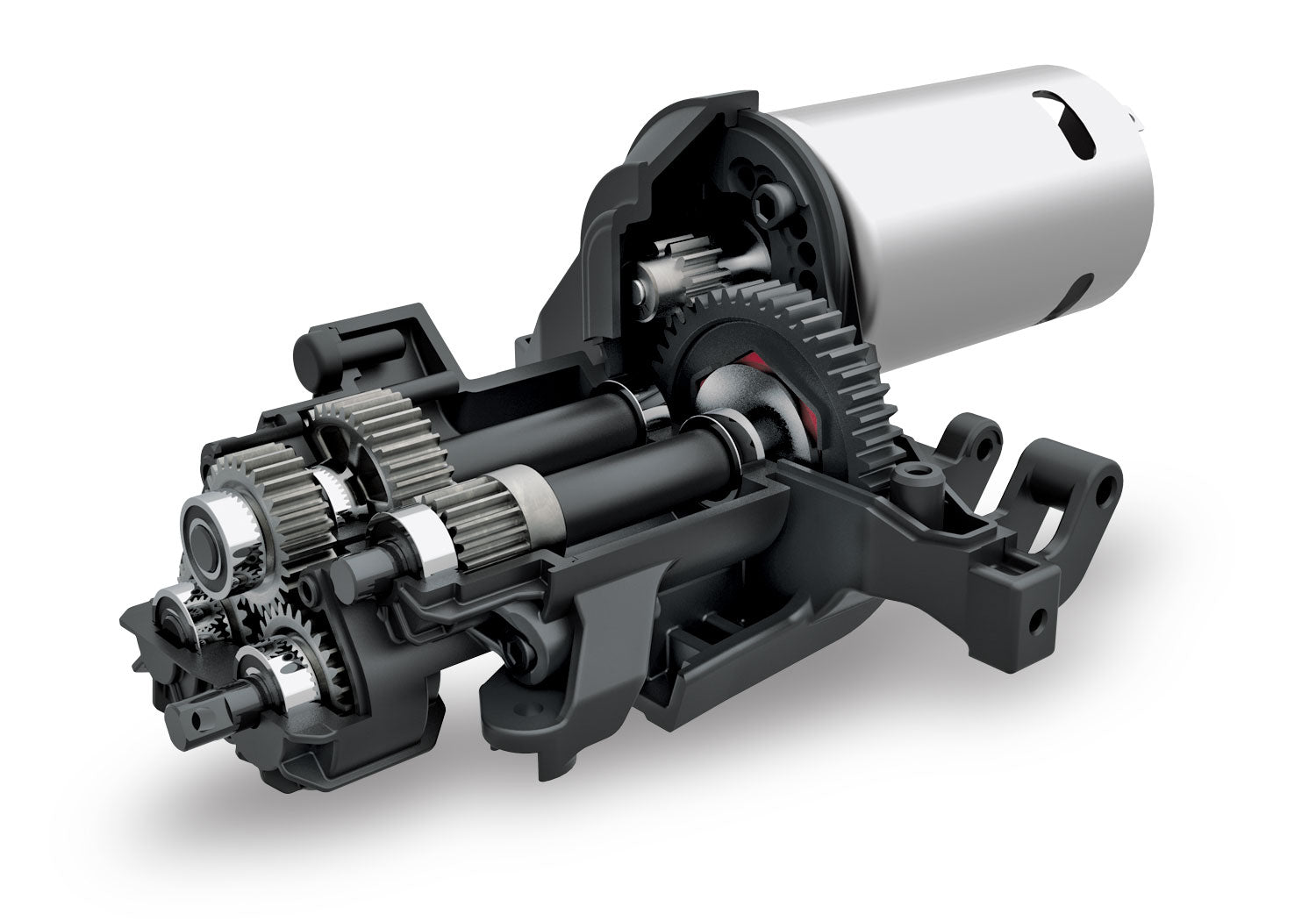

Transmission:	Single Speed
Gear Pitch:	32P
Differential Type:	Spool (no differential)

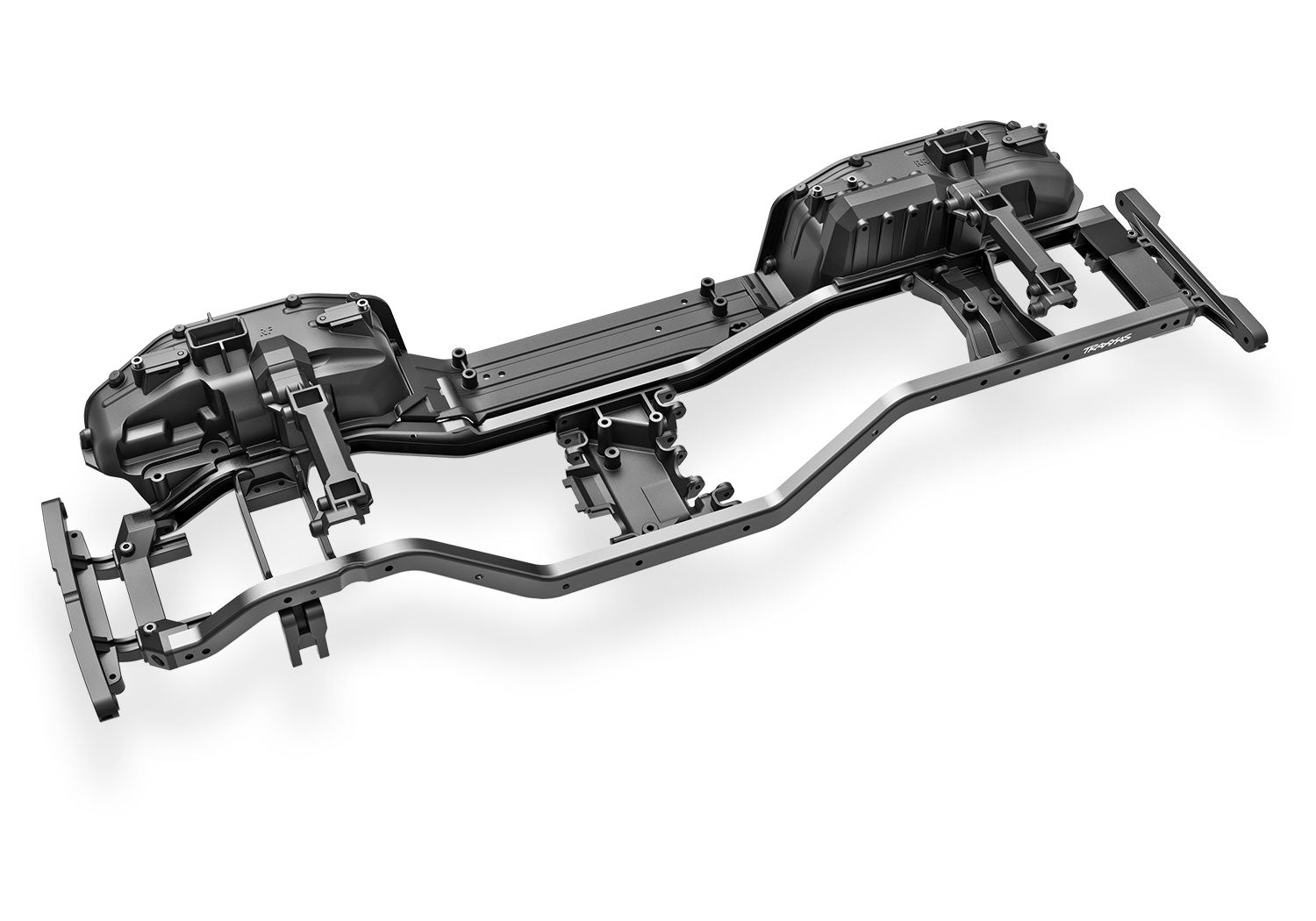

Chassis Structure / Material:	Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type:	Electronic “Hill Hold”
Drive System:	Shaft Driven 4WD
Steering:	Chassis Mounted Servo

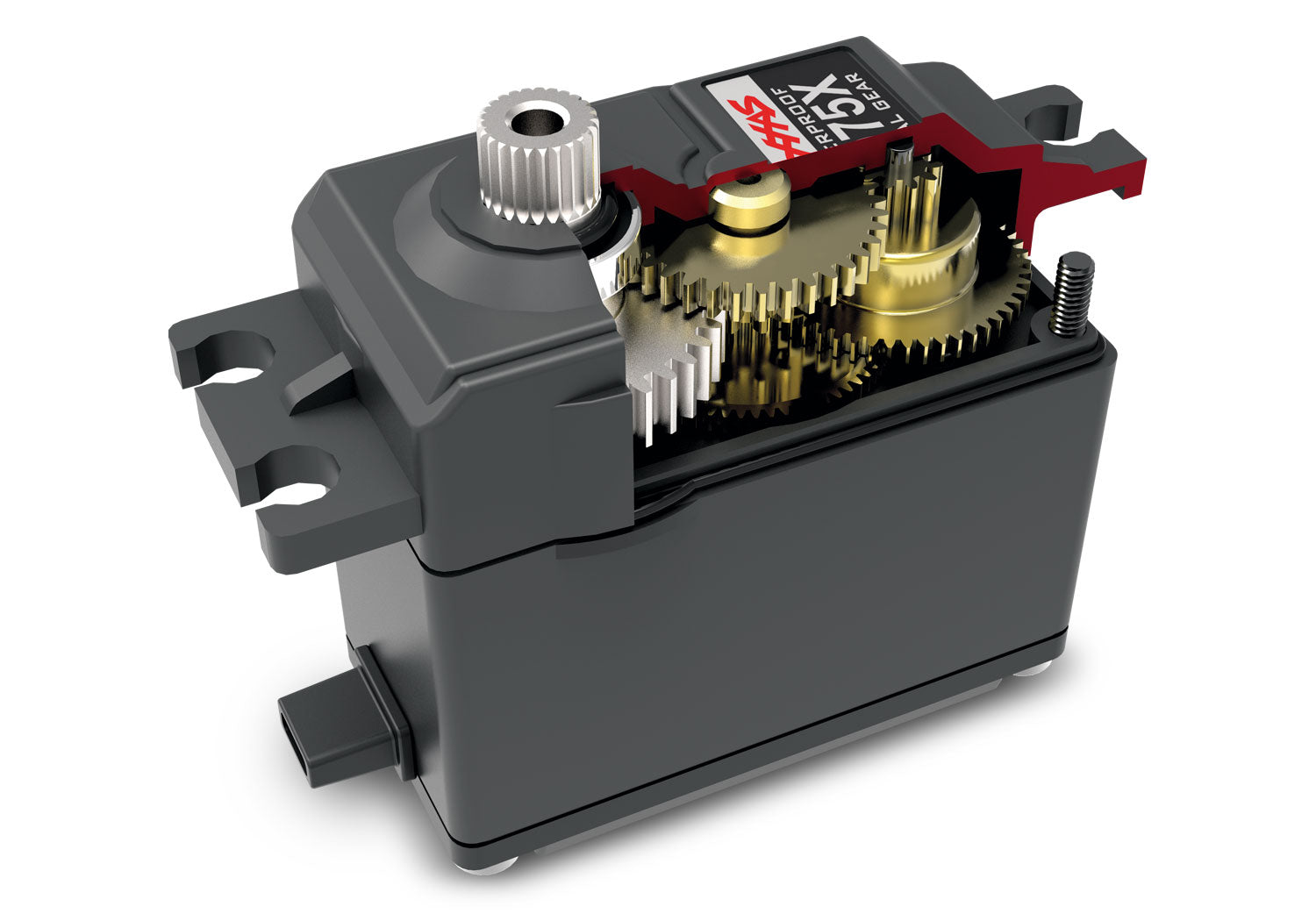

Servo:	2075X Metal Gear
Transmitter:	TQ™ 2.4 GHz 4-Channel Transmitter
Receiver:	6533
Skill Level:	1
Battery Tray:	158.75 L x 47 W x 23/26mm H



Type:	High-torque brushed motor
Size:	550
Weight:	390g (13.76oz)
Length:	3.071" (78mm) overall length, 2.25" (57mm) can length, 1.532" (38.9mm diameter)
Turns:	21T reverse rotation
Voltage:	16.8V



Input Voltage:	6–7 Cells NiMH, 2–3s LiPo
Case Size:	1.23” W x 2.18” D x 1.04” H
Weight:	2.6oz (74g)
Motor Limit:	21-turns (550 size)
On Resistance Forward:	0.004 Ohms
On Resistance Reverse:	0.004 Ohms
Peak Current - Forward:	100A
Peak Current - Reverse:	100A
Braking Current:	60A
Continuous Current:	18A
BEC Voltage:	6.0 VDC
BEC Current:	1A
Power Wire:	14 Gauge / 5”
Input Harness Wire:	26 Gauge / 14.5”

Transistor Type:	MOSFET
PWM Frequency:	1700Hz
Low Voltage Detection (LVD):	2-Stage indicators, switchable (on or off)
Thermal Protection:	Thermal Shutdown
Profile selection:	Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:* 50% FWD, 100% brakes, 50% REV Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup:	Yes, Traxxas EZ-Set®
* Patented
