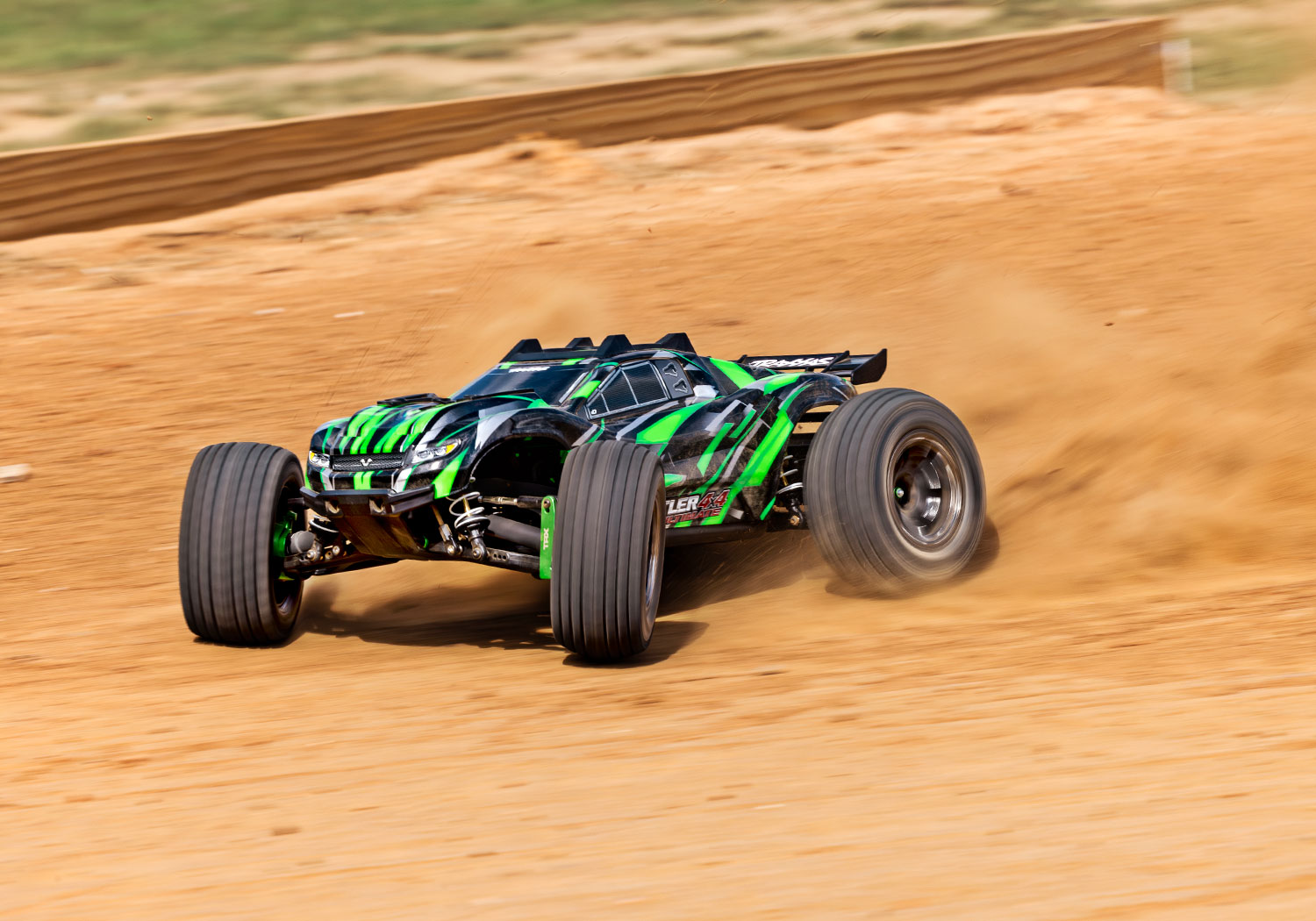

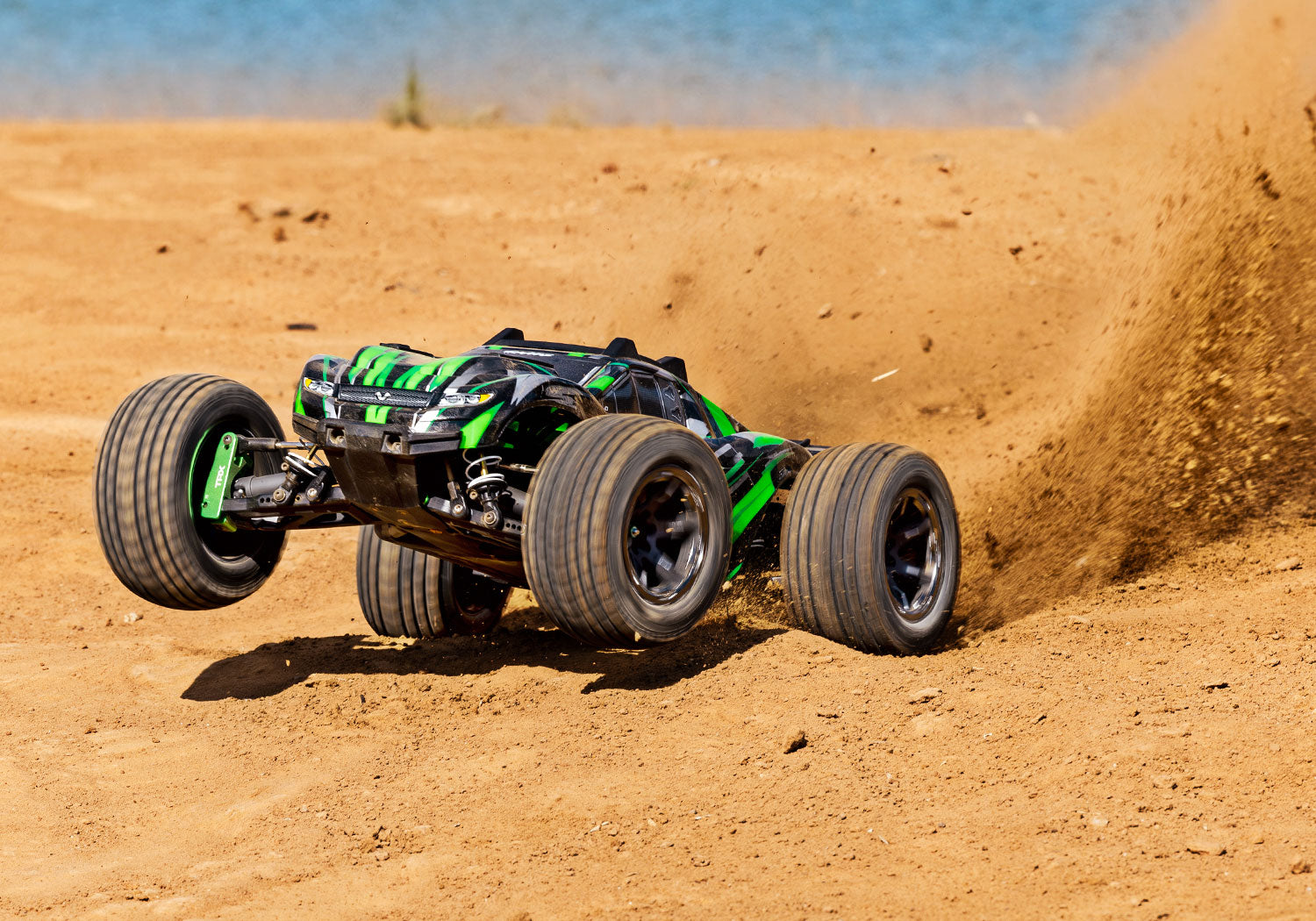

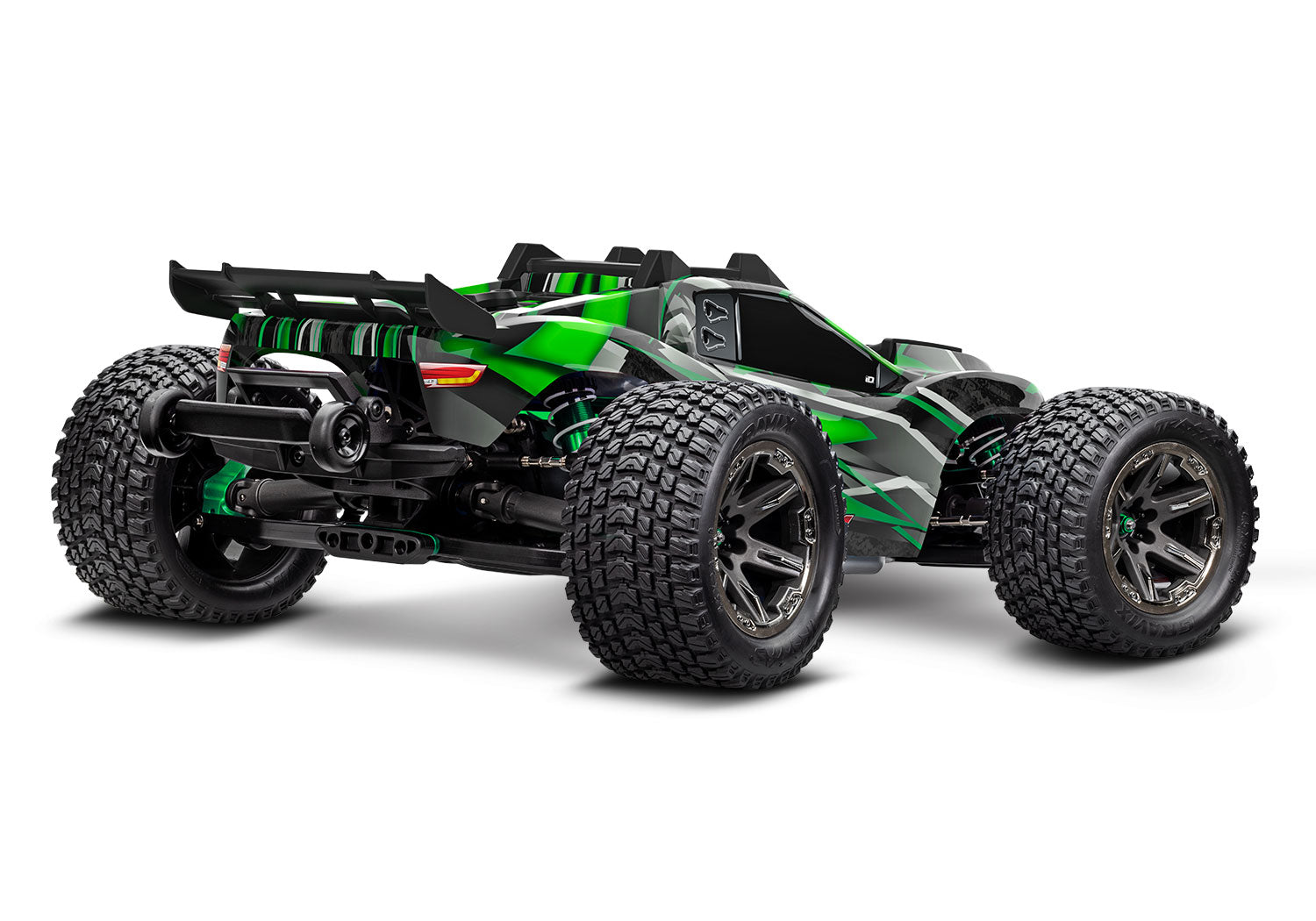

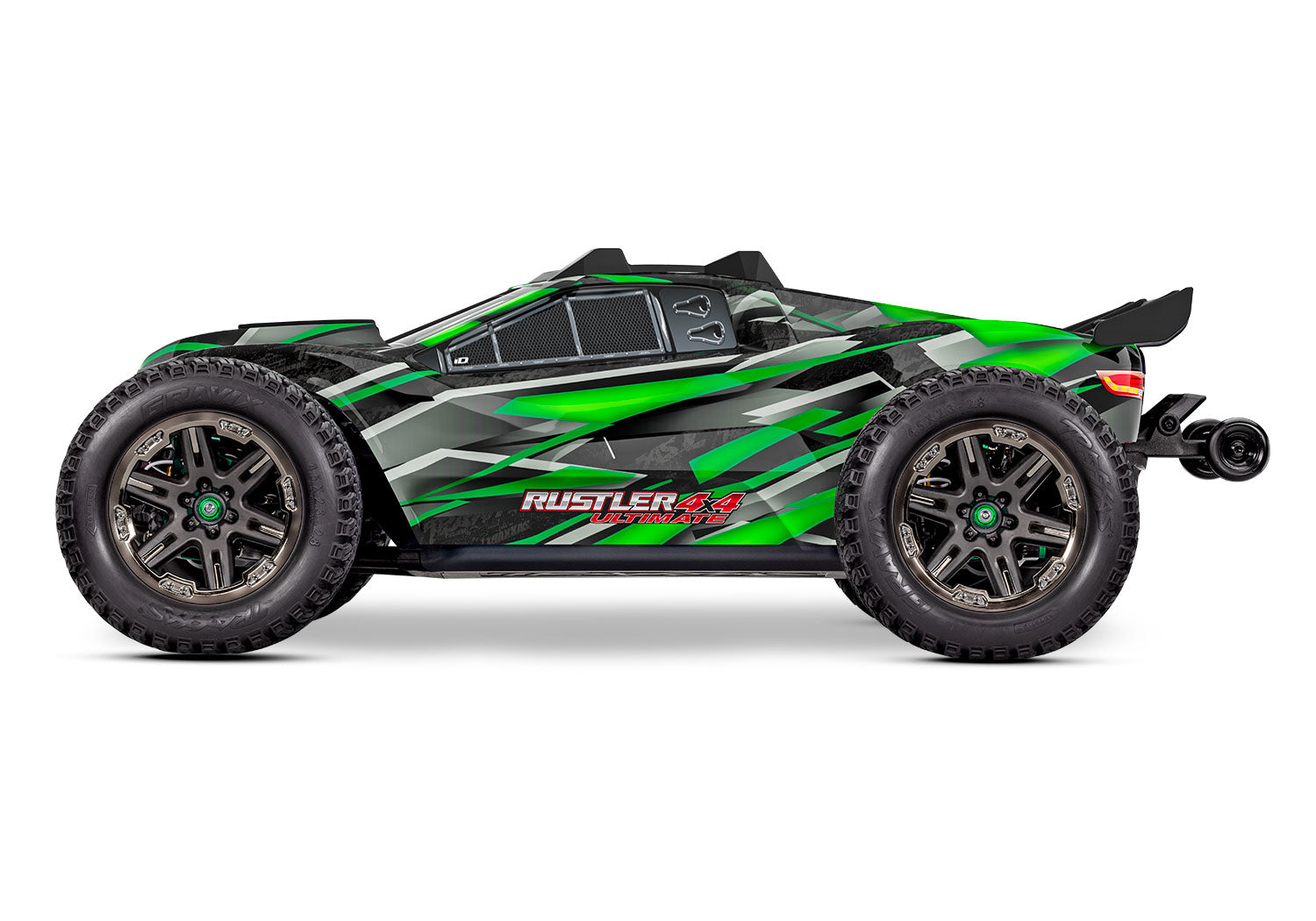

67097-4GREEN Traxxas Rustler 4X4 Ultimate - Green

UNLOCK THE FULL POTENTIAL OF YOUR TRAXXAS TQi^™ RADIO SYSTEM

• SEE REAL-TIME TELEMETRYView and record speed, temperature, and voltage data while you drive
• CONTROL YOUR TRANSMITTER SETTINGSMake tuning adjustments on the fly and save your favorite settings
• MANAGE YOUR MODELS AND PROFILESSave individual setting and tuning data for up to 30 different vehicles

Transmission:	Single speed
Overall Drive Ratio:	13.97:1
Differentials:	Sealed, 2-gear

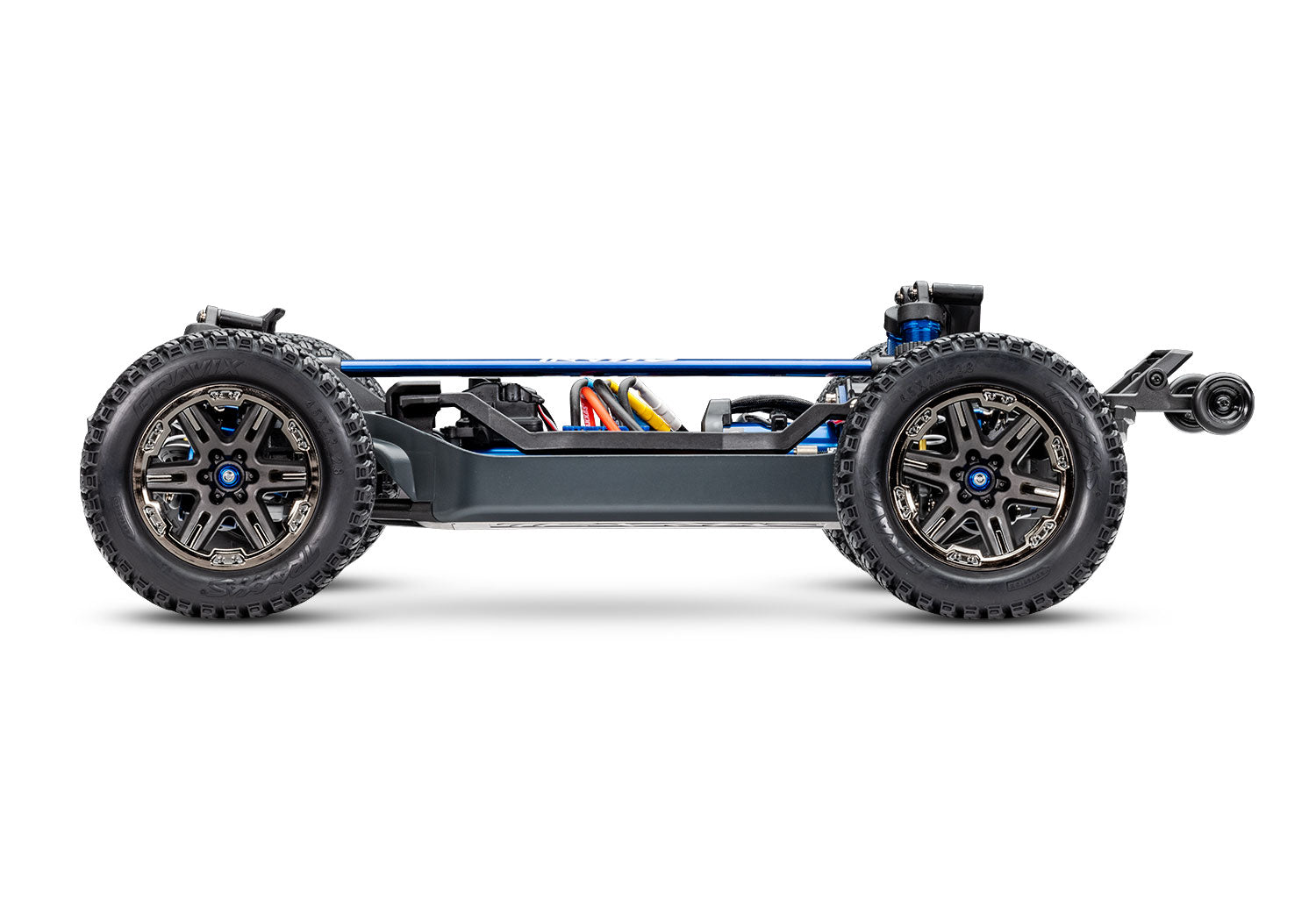

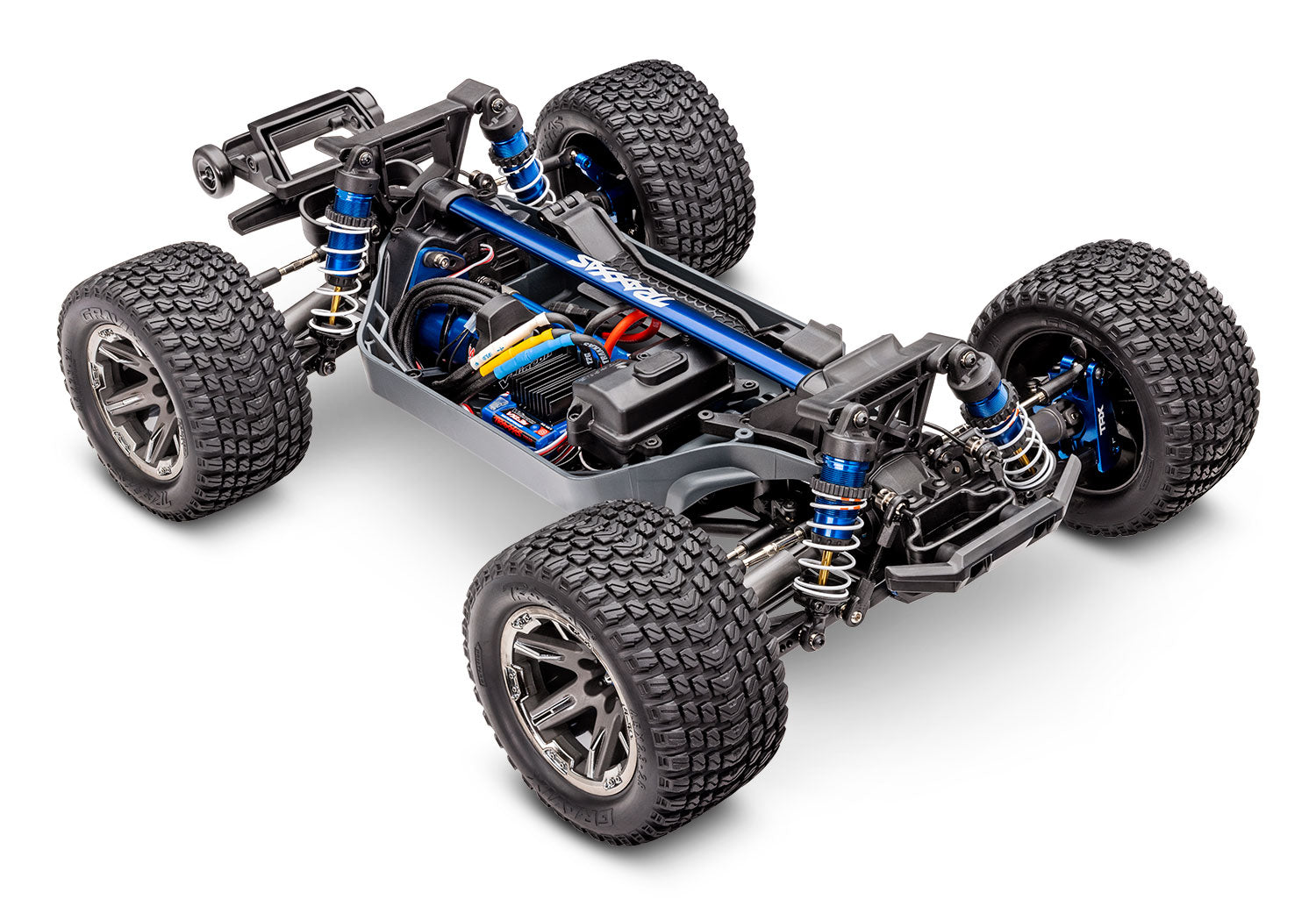

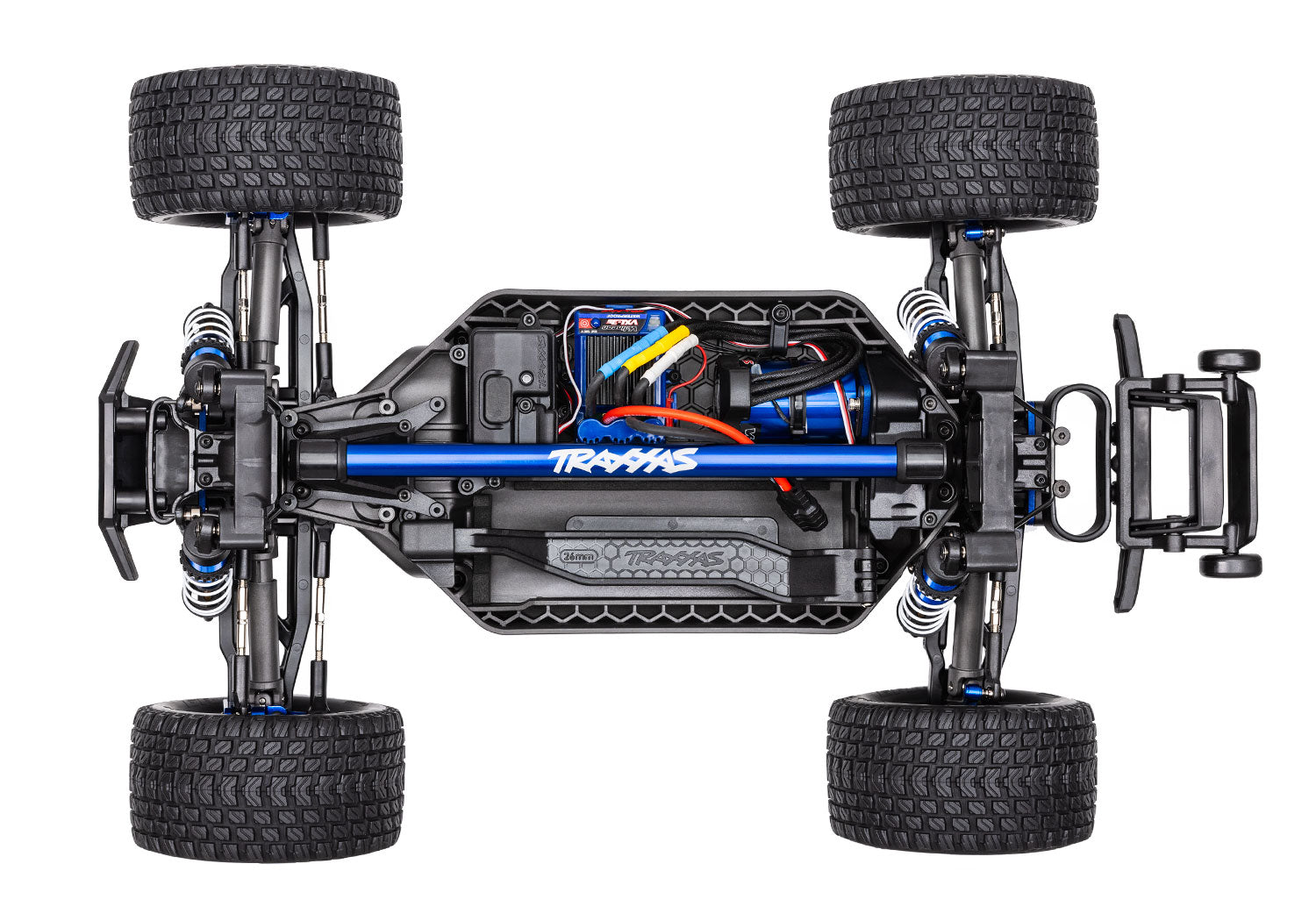

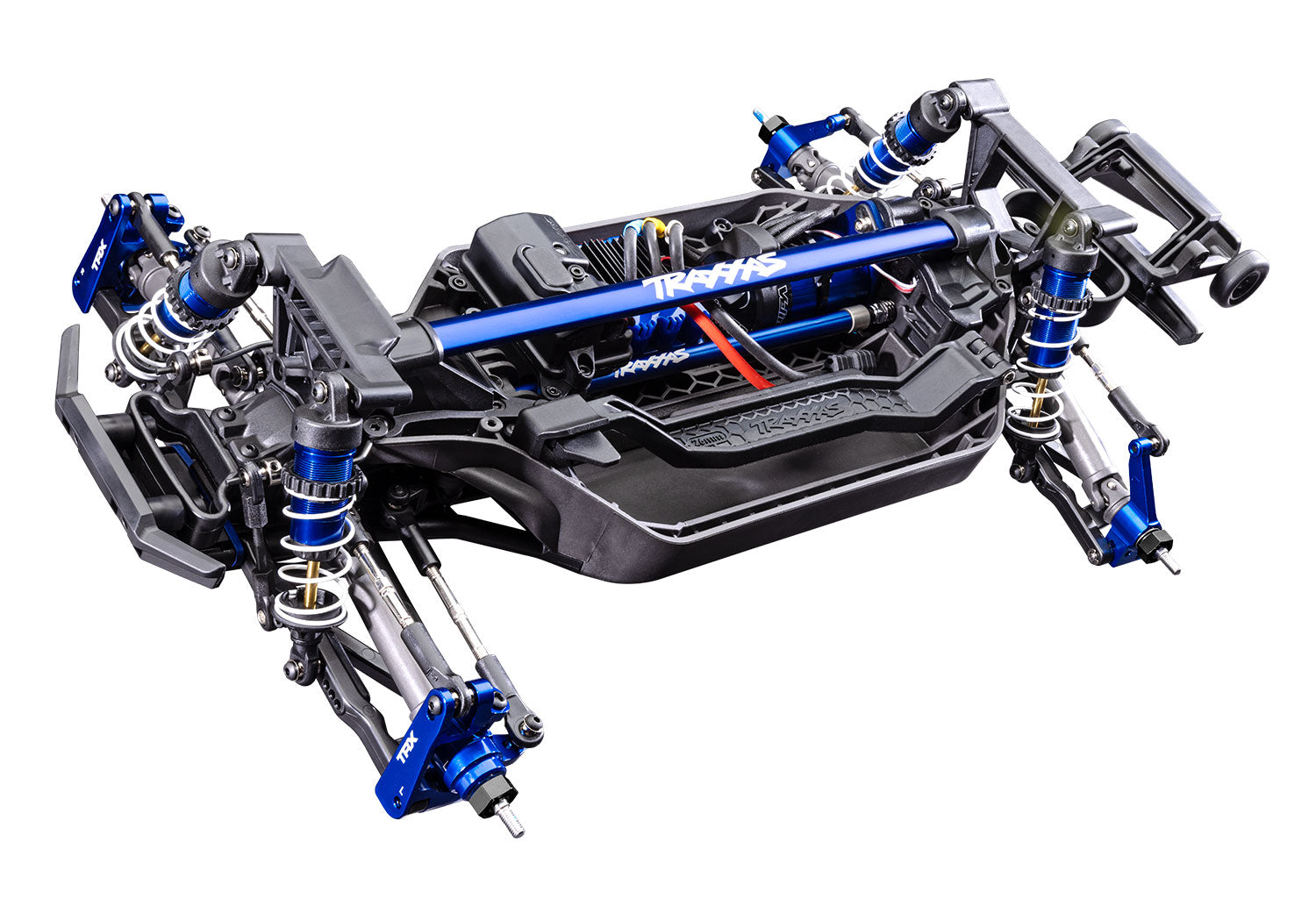

Chassis Structure / Material:	Composite tub
Brake Type:	Electronic

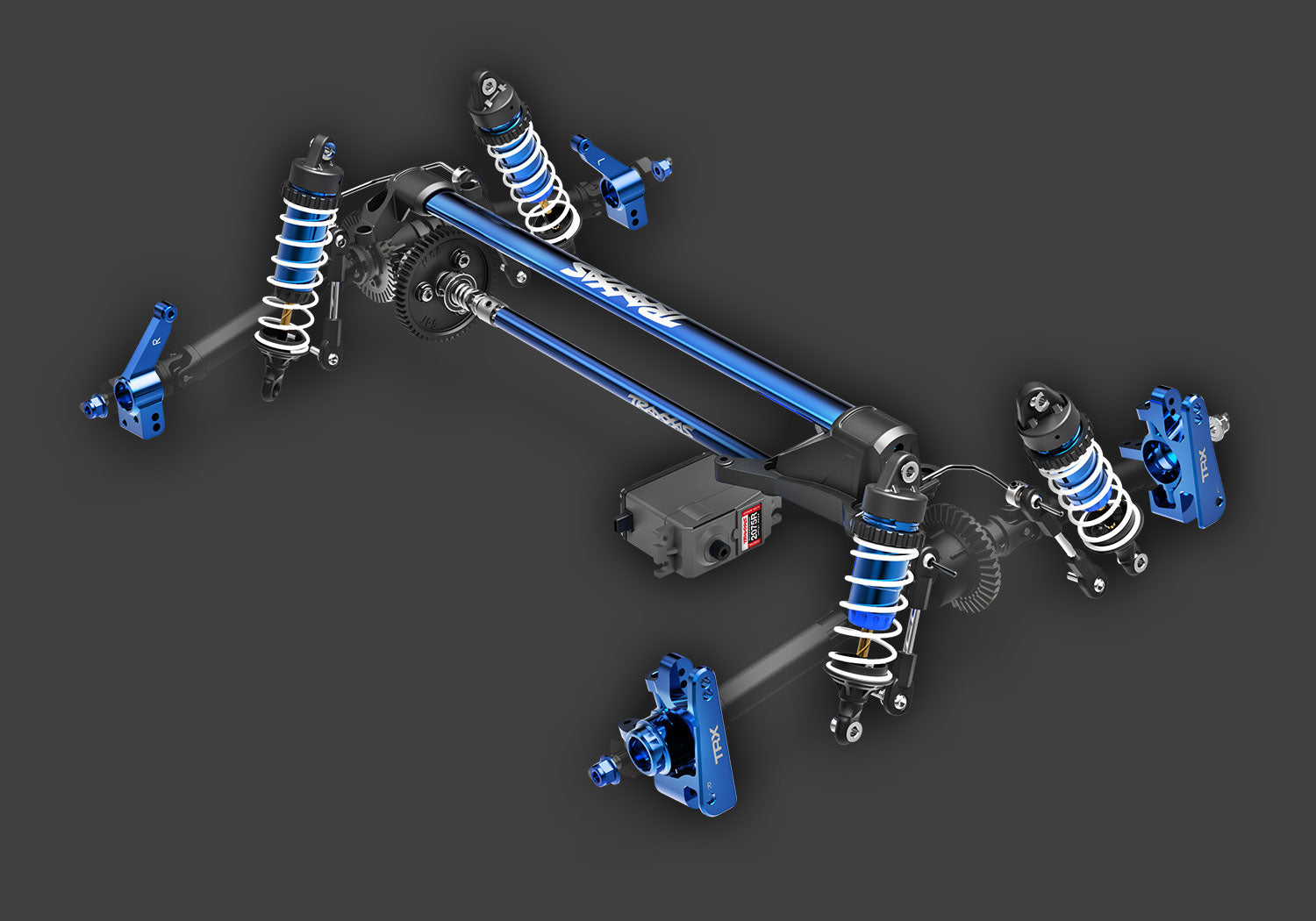

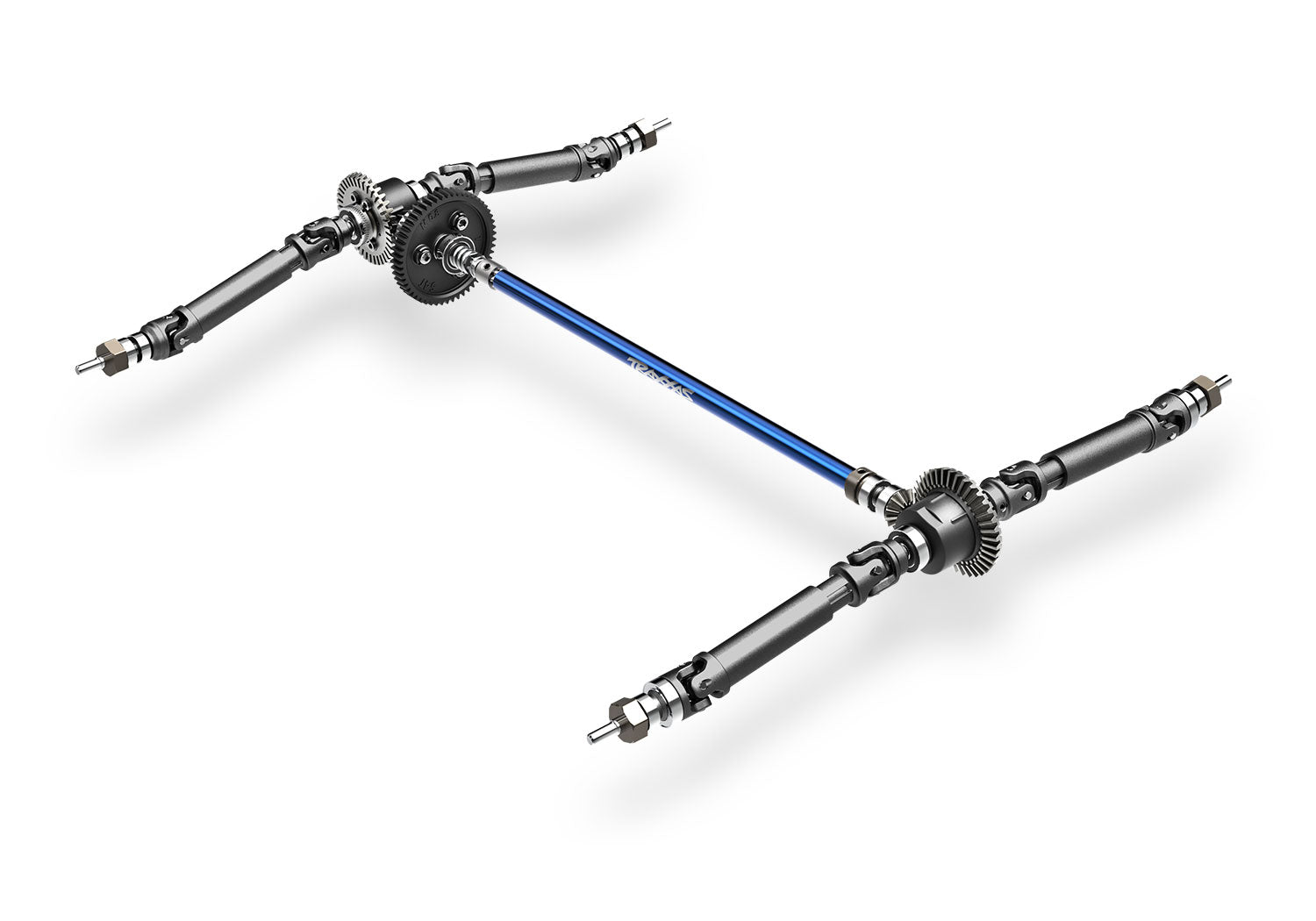

Drive System:	Shaft driven 4WD
Steering:	Bellcrank with integrated servo saver
Radio System:	TQi™ 2.4 GHz 2-ch transmitter with wireless module and 6533 TSM® receiver
Servo:	High-Speed Waterproof Metal Gear 2075R
Top Speed (optional gearing):	65+ mph with 3-cell LiPo and 20/54 gearing
Skill Level:	1
Battery Compartment:	162 mm x 50 mm x 25 mm *42 mm with optional battery strap (sold separately)



Type:	Velineon® 3500 kV sensorless brushless
Weight:	9.24 ounces (262 g)
Length:	2.20 inches (56 mm)
Diameter:	1.41 inches (36 mm)
Connector Type:	3.5 mm bullet



Input Voltage (cells):	7.2 – 11.1 V (6–9 cells NiMH), 2s–3s LiPo
Case Size:	2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33 mm)
Weight:	3.84 ounces (109 g)
BEC Voltage:	6.0 volts
Reverse Delay:	Yes, with lockout
Thermal Protection:	Two-stage thermal shutdown
Ports:	Auxiliary fan

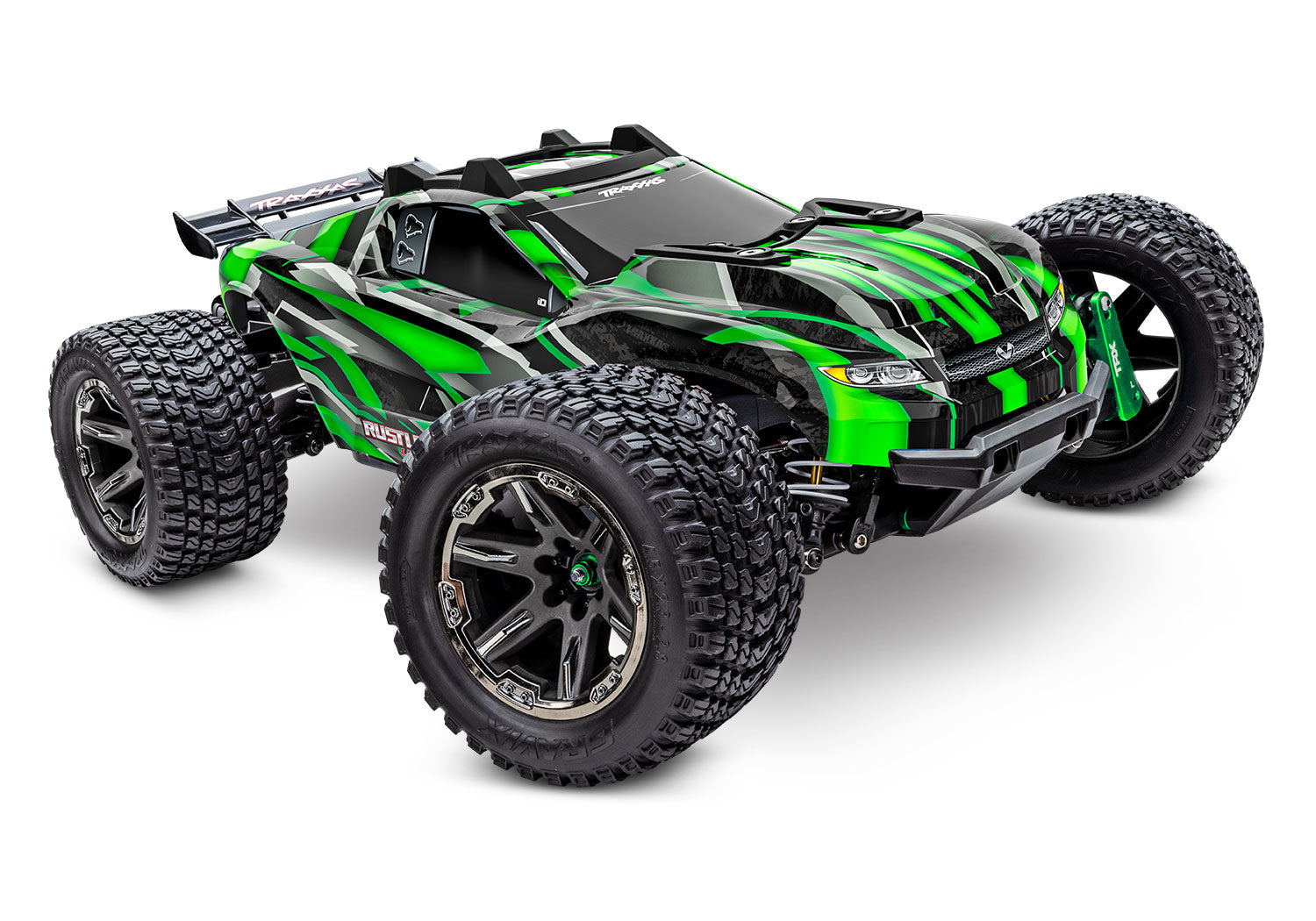

MODEL 67097-4: Rustler^® 4X4 Ultimate: 1/10 scale 4X4 stadium truck, Fully-assembled, waterproof electronics, Ready-To-Race^®, with TQi^™ 2.4 GHz 2-channel radio system with factory-installed Wireless Module and telemetry sensors, VXL-3s^™ speed control, and clipless ProGraphix^® body. Requires: battery and charger.

What’s In The Box:

• Rustler 4X4 Ultimate with Velineon VXL-3s and 3500 kV motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries

  Rustler 4X4 VXL requires a single NiMH or LiPo battery.

• Charger

  Traxxas EZ-Peak^® Live charger (2971) is recommended for easy and fast charging performance

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter
