30120203 HOBBYWING QUICRUN Brushed ESC WP 1060

$39.99 CAD
$39.99 CAD
      ⚡️ Free shipping over 100$* Canada
      ⚡️ Free shipping over 200$* USA
      * Except Oversize
      ⏱ Real time inventory
      Don't forget to click "notify me" for an out of stock product.
      We serve you in both English and French

      *Waranty only applicable at Hobbywing directly* *Garantie Applicable chez Hobbywing seulement*



      The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.

      Features

      1. Comes with a handy T-Plug

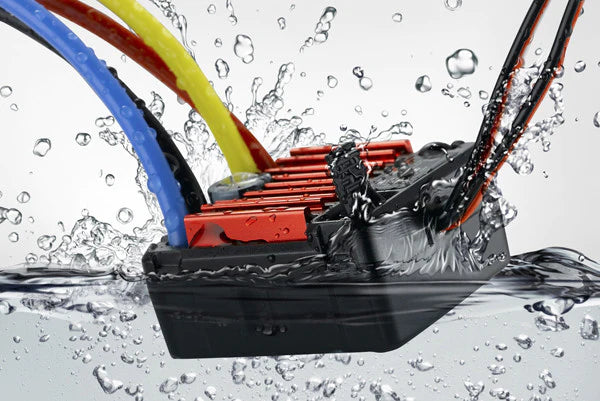

      2. Water-proof and dust-proof, suitable for all-weather condition races.
      3. Small size with built-in capacitor module.
      4. Four running modes to fit various vehicles
        • Fwd/Br/Rev
        • Fwd/Br
        • Fwd/Rev (also called "Crawler Mode")
        • (Note: Fwd =Forward, Br=Brake, Rev=Reverse)
      5. Great current endurance capability.
      6. Switch mode built-in BEC has powerful output.
      7. Automatic throttle range calibration, easy to use.
      8. Easy to set the ESC parameters with jumpers.
      9. Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

      Technical Specifications

      Fwd. Cont. /
      Peak Current:      		 60A /
      360A
      Rev. Cont. /
      Peak Current:      		 30A /
      180A
      Voltage Range: 2-3S Lipo or 5-9 NiMH
      Scale: 1/10
      Application: Touring Car, Buggy, Short Course Truck
      Monster, Truggy, Rock Crawler, Tank
      Motor Limit: 2S Lipo or 6 cells NiMH: 540, 550 Size Motor: >=12T or RPM<30000 @7.2V
      3S Lipo or 9 cells  NiMH: 540, 550 Size Motor: >=18T or RPM<20000 @7.2V
      BEC Output: 3A / 6V
      Plugs: T-Plug
      Dimensions: 36.5 x 32 x 18mm
      Weight: 39g

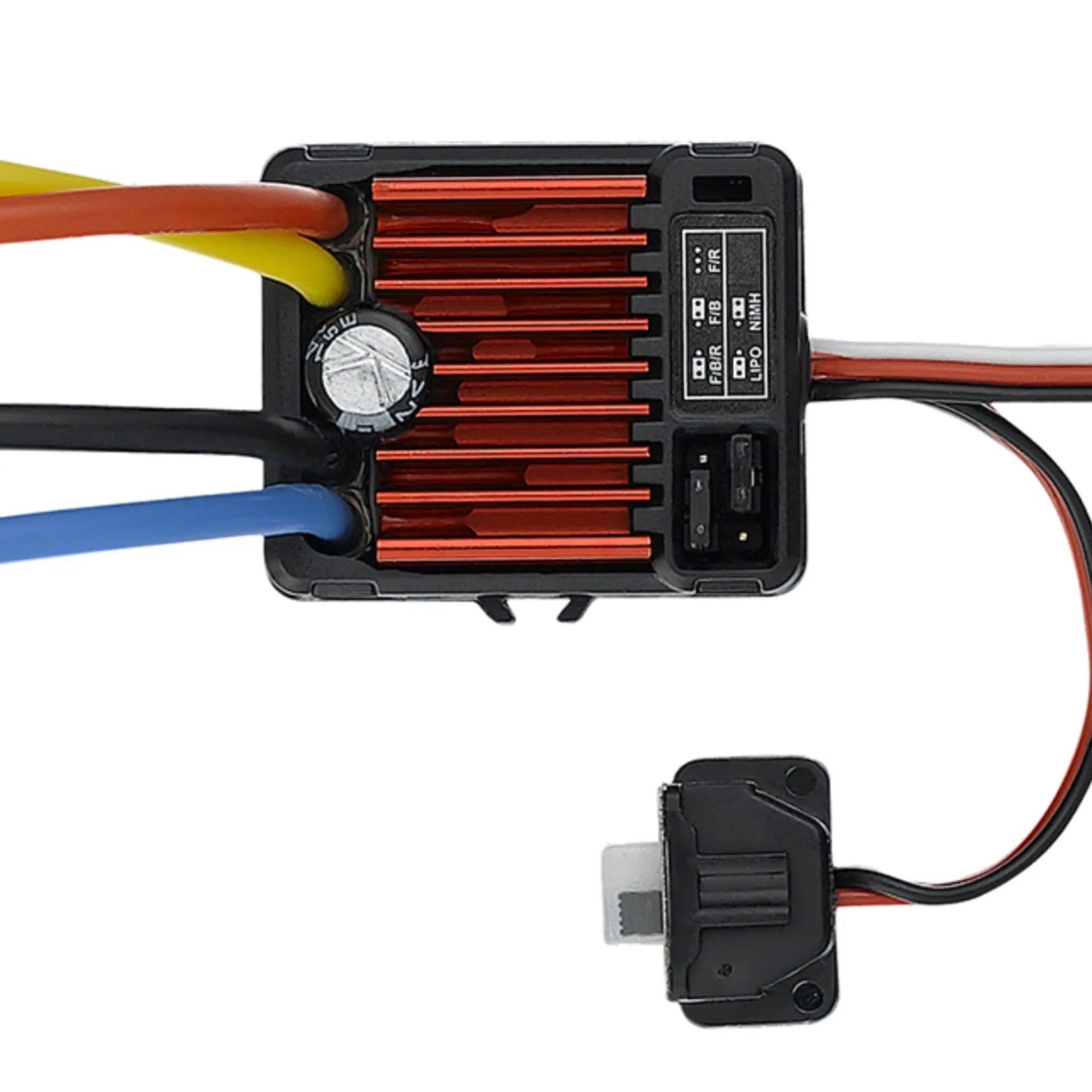

      The ESC can be programmed by jumpers.

      • Running Mode:
        •         Fwd/Br/Rev
        •         Fwd/Br
        •         Fwd/Rev (Crawler)
      • Battery Type: Lipo / NiMH
