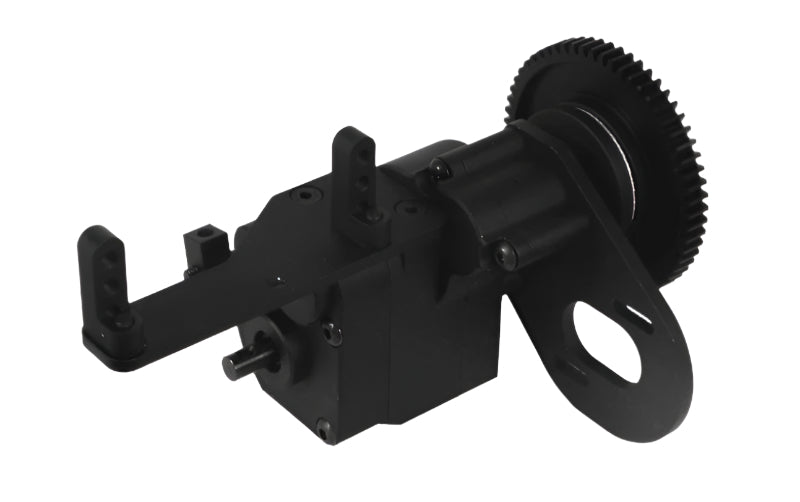

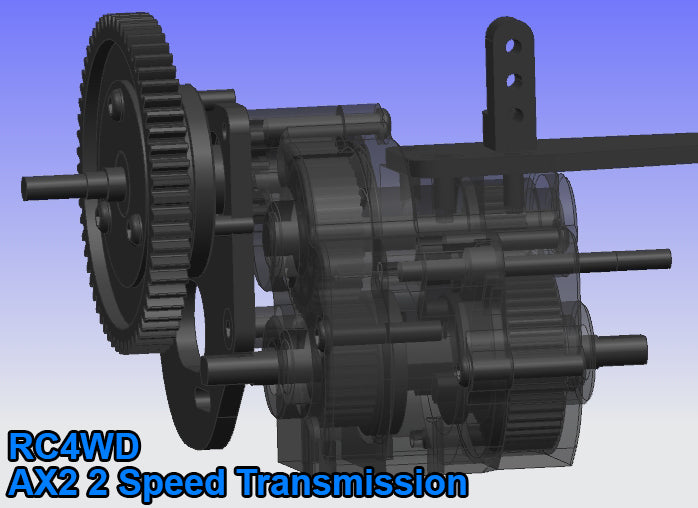

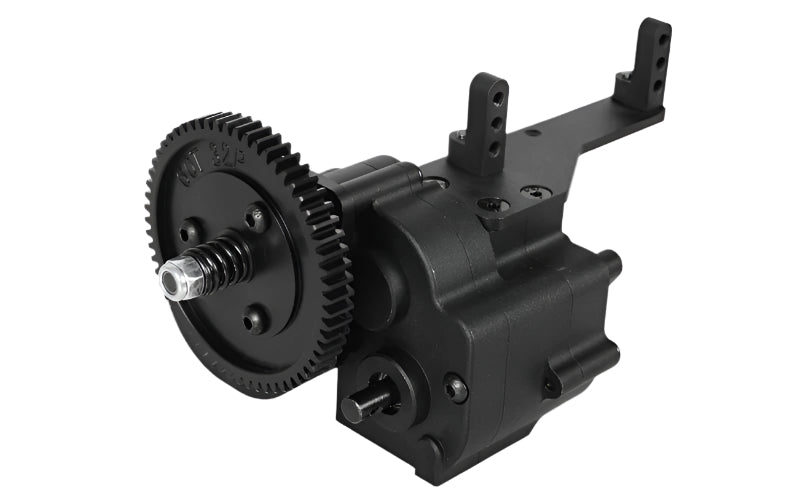

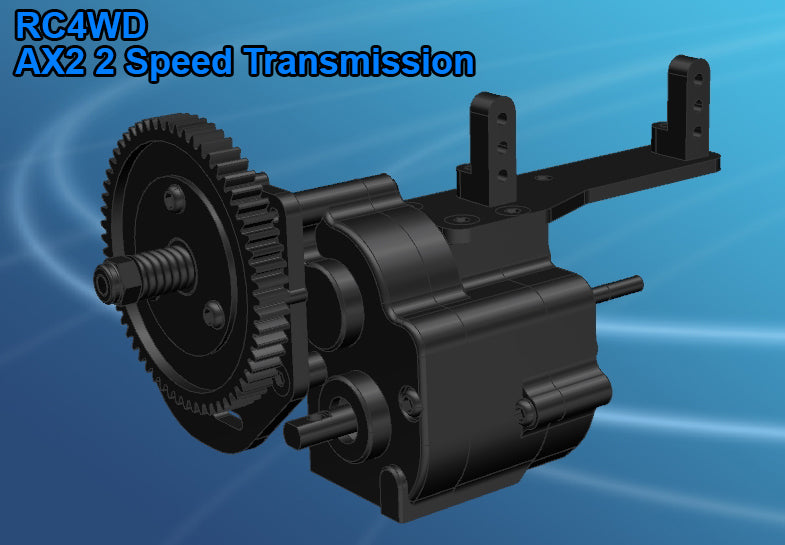

RC4WD AX2 2 Speed Transmission for Axial Wraith & SCX10/Honcho

• CNC Machined Billet Aluminum
• Wraith / SCX10 Direct Fit
• 15T 32P Steel Pinion
• 60T 32P Delrin Spur
• Gear Ratio Pinion / Spur Ratio = 4:1
• 2 Speed
• Wide Steel 48 Pitch Internal Gears
• 1st Gear Ratio = 5.05:1
• 2nd Gear Ratio = 1.78:1
• Slipper Clutch

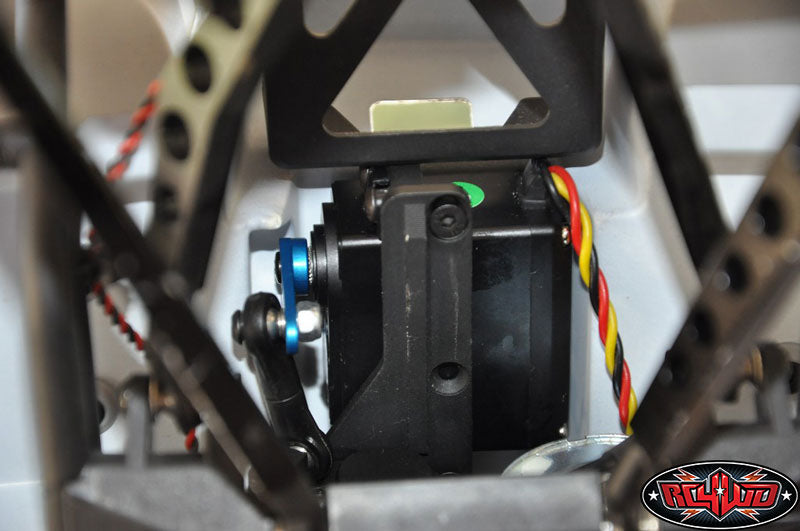

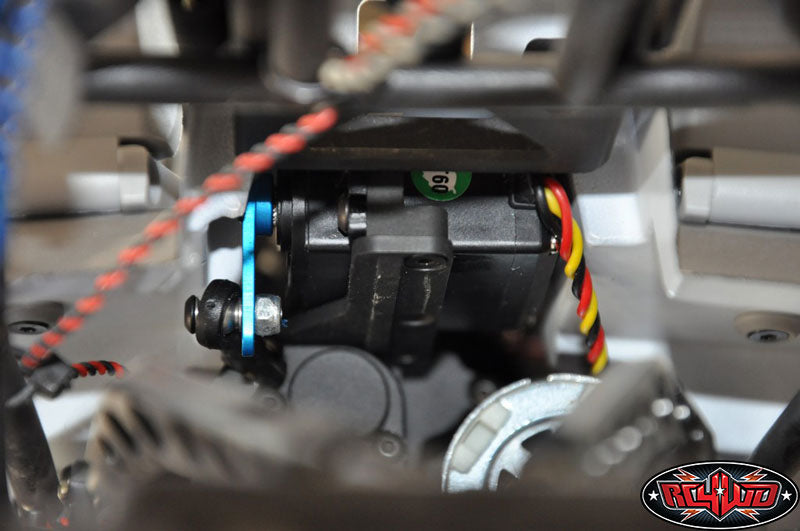

• Shift Servo Mount
• Compatible With Other Brand Pinions and Spur Gears
• Engineered by RC4WD UK
• Manufactured by RC4WD
• Output Shaft OD: 0.19" / 5mm
• Height: 2.6in / 66mm

• Length: 3.15in / 80mm

• Width: 4.8in / 121.7mm
• Weight: 8.71oz / 247g

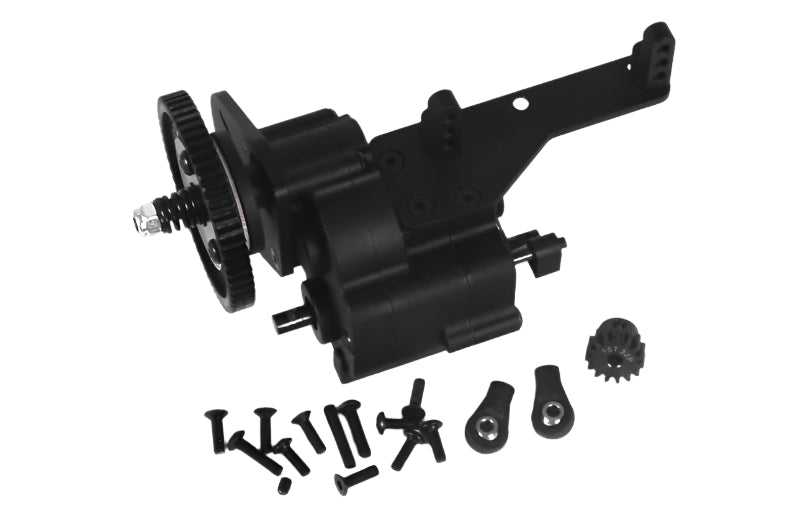

What's Included:

• 1 x AX2 2 Speed Transmission for Axial Wraith & SCX10/Honcho
• 1 x 15t 32p Hardened Steel Pinion Gear (Z-G0014)
• 1 x M3 x 15mm Set Screw (1 PCS from Z-S0650)
• 2 x Mini Plastic Rod End (2 PCS from Z-S0398)
• 5 x M3 x 10mm FHCS (Black) (Z-S0860)
• 4 x M3 x 8mm BHSC (Black) (Z-S0652)
• 2 x M3 x 12mm BHSC (Black) (Z-S0654)
• 1 x M3 x 3mm Set Screw (1 PCS from Z-S0124)


Replacement Parts:

• Uses 8x 5x11x4 Bearings

• Uses 2x 5x8x2.5 Bearings
• 60t Delrin Spur Gear for AX2 2 Speed Transmission (Z-G0048)
• Servo Mount for AX2 2 Speed Transmission (Z-S0509)
• Shifting Assembly for AX2 2 Speed Transmission (Z-S0043)
• Internal Gear Set for AX2 2 Speed Transmission (Z-G0057)
• Slipper Clutch Assembly for R3 and AX2 Transmissions (Z-S0704)
• Steel Button Head Cap Screws M3 x 6mm (Z-S0651)


Optional Parts:

• M3 Short Straight Aluminum Rod Ends (Black) (10) (Z-S1636)


Optional Upgrade:

• AX2 Heavy Duty Output Shaft (Z-S0830)


Notes:

• For best results you will need to remove the shifters from the wraith interior.

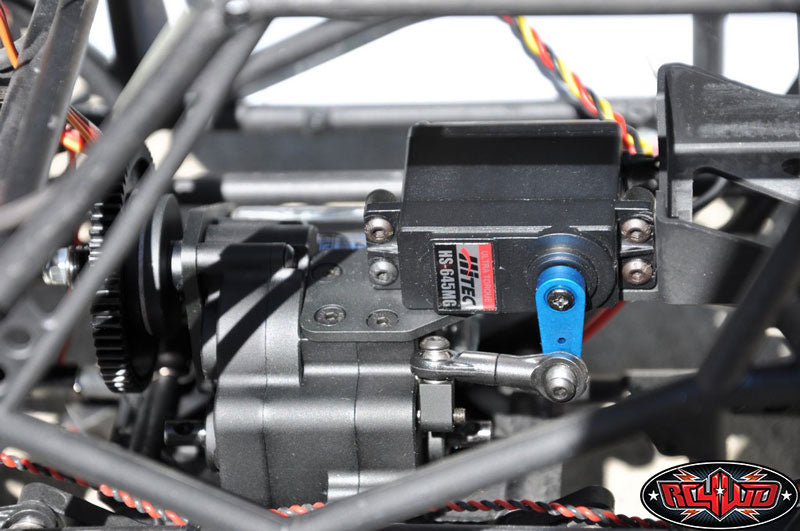

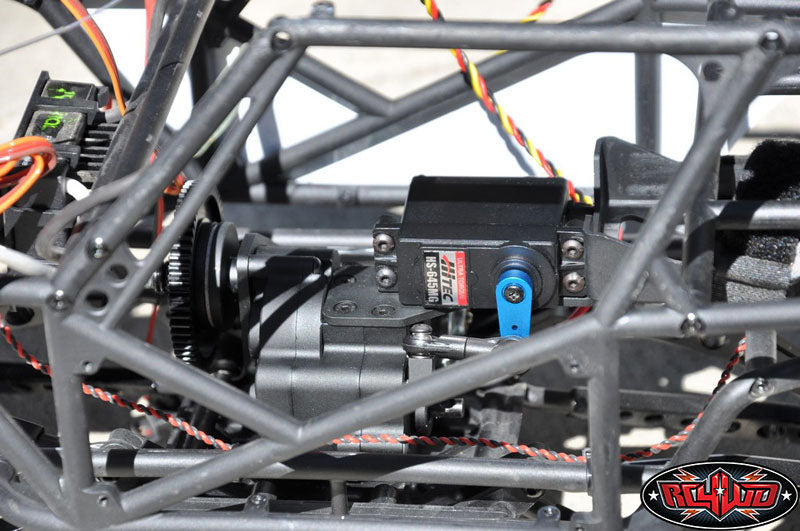

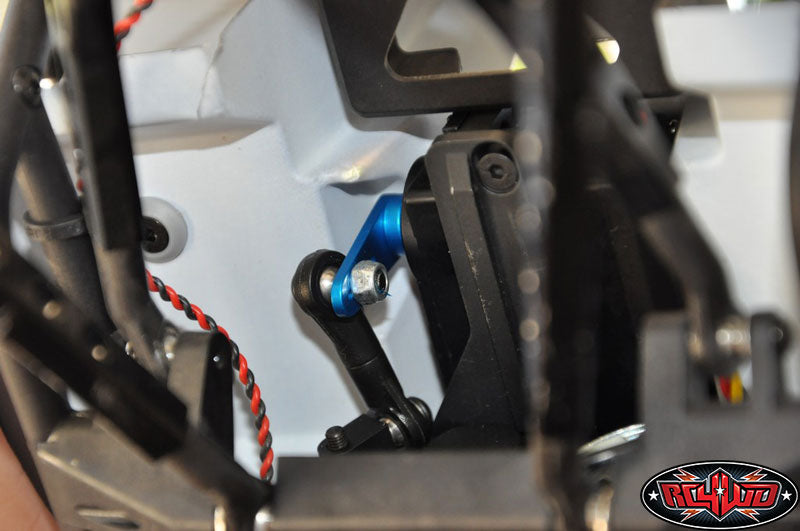

• Put the servo on and attach the shift linkage.

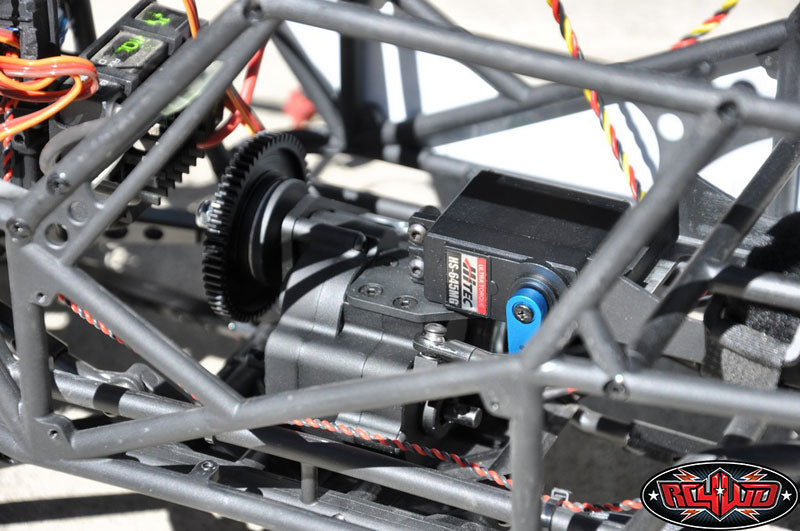

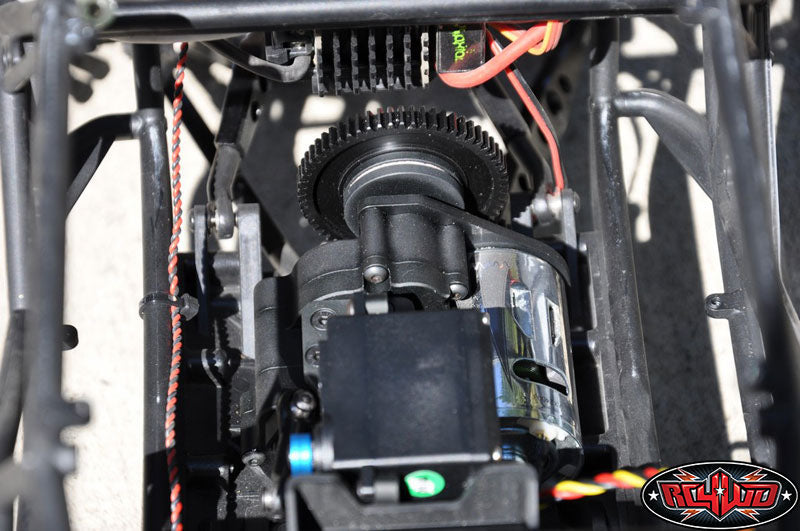

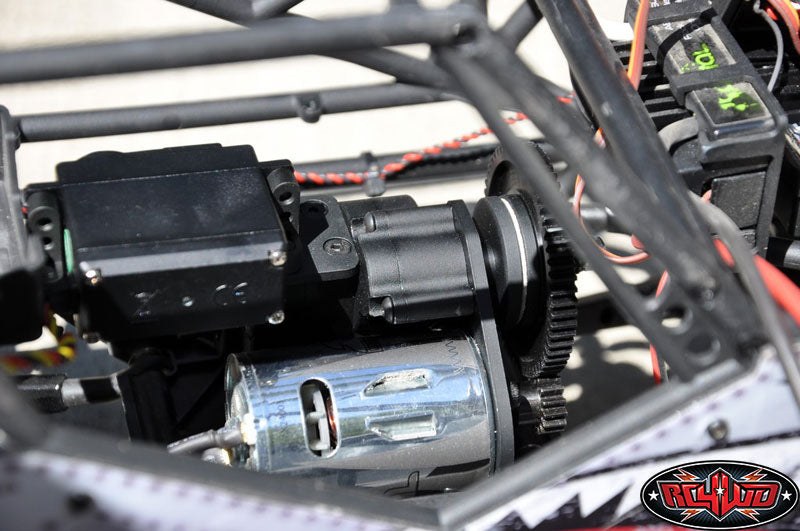

• Install in wraith and refit the interior.
• Without pinion/spur, stock Axial tranny is 2.6:1.
• Installation into the SCX10 line will require customization of your setup.

This product has been tested and approved by the Recon G6. It is Recon G6 Certified.
